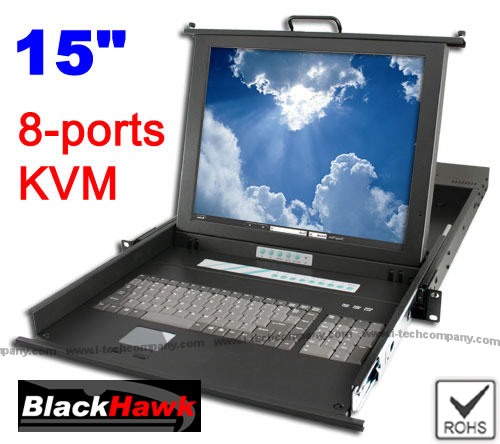

1U Heavy Duty Rackmount 15" LCD keyboard w/8-ports KVM(Model:BHK115-8e)

1U Heavy Duty Rack Mount 15" LCD Monitor KVM Keyboard w/8-ports KVM switches (Model:BHK115-8e)
  • Front View
  • Front View Close Up
  • Keyboard Close Up
  • OSD
  • Hinge
  • Rails
  • Locking Rail
  • Build-in Power Adapter
  • Back View
  • Accessories

1U Heavy Duty Rack Mount 15" LCD Monitor KVM Keyboard w/8-ports KVM switches (Model:BHK115-8e)

Inquiry/Quote Request
bhk1158e
  • Overview
  • Specifications
  • Download
Product discontinues. Contact us at Info@iTechLCD.com for replacement item.

Minimum order 15 pcs with 10 weeks lead time.

BHK Series RoHS compliant NOW is available!!
Features and Benefits
  • Only 1U (1.75" high) of vertical 19" rack-mount space.
  • Protective Anti-glare Glass for more protection for LCD -Auto Shut off when LCD is in park position
  • Laptop-style tilting display provides for short pull-out and minimal intrusion into the aisle space in front of the rack.
  • High-brightness 250-nit,TFT LCD Panel and high contrast-ration active TFT LCD flat panel integrated folding display.
  • 15.1" display supporting 1024 x 768 resolution.
  • Full 101-keys Windows keyboard (including a dedicated numeric keypad), and an integrated touch-pad pointing device.
  • Industrial-grade heavy-duty steel construction. with a built-in lock to prevent unauthorized console access.
  • Smooth-operating sliding rails that self-lock when pulled all the way out.
  • Build-in power supply
  • Adjustable rear mounting support, up to 34-inches in depth.
  • Built-in thumb screws for securing the unit when folded and pushed all the way in.
  • Meets EIA310c & IEC-3 Specifications
  • Add PCs or Remove Connected PCs for Maintenance without powering down the KVM switch for PCs

Comes with

  • (1) Black Hawk KVM drawer unit
  • (8) 3-in-one KVM cable, 6-feet
  • (2) Rear extension mounting brackets
  • (8) Mounting screws for rear extension mounting brackets
  • (1) US Power cord
  • (1) User Manual
Click here for Specification

Specification
LCD
Panel TFT 15? LCD Panel
Screen Type TFT
Frequency 60Hz
Contrast Ratio 350 : 1
Viewing Angle 120° (H) x 120 ° (V)
Resolution 1024 x 768
Pixel pitch 0.264(H) x 0.264(W) mm
Response Time Tr=5ms, Tf=20ms (Typ.)
Brightness 250 cd/m2
Panel Color 16.2M
Backlight MTBF 50,000 hours under 20 - 30°C
KVM (BHK115-8e only)
Computer Connectors 8
Connector 15-pin HDB type, Keyboard,mouse, all-in-1
Cascade Level 8 Levels
Max. Access PCs 128
Input VGA Resolution 1920 x 1440
Power Supply
Built-in Adapter 110V - 220V AC Input 12V 5A Output
Cable Legnght 6 ft (182cm)
Safety Approval UL, CE
Diagram


PS/2 Single Console KVM Switch

Back to Top
Model No. BHK115-8e/117-8e/117-16e
PC Port 8
16
Console Port 1
PC Port Connector
(All Female Type)		 PS/2 Keyboard Mini Din 6 pin
PS/2 Mouse Mini Din 6 pin
VGA HDDB 15pin
Console Port Connector
(All Female Type)		 PS/2 Keyboard Mini Din 6 pin
PS/2 Mouse Mini Din 6 pin
VGA HDDB 15pin
Daisy Chain Port Connector
(All Female Type)		 PS/2 Keyboard Mini Din 6 pin
PS/2 Mouse Mini Din 6 pin
VGA HDDB 15pin
Mouse Conversion (OnlyConsole Port to PC Port) Console PS/2 to each PC port serial mouse
PC selection On Screen Display Manual, Hot Key, Push Button
7 Segment LED 1 Bank LED, 2 PC Port LEDs
On Screen Display Control Yes
Scan Intervals 5~99 Sec.
Keyboard Emulation PS/2
Mouse Emulation PS/2
VGA Resolution 1024 x 768(15"); 1280 x 1024(17")
Bandwidth 200MHz
Daisy Chain MAX Level 8 levels
MAX. PC Connection 120(8ports) / 128(16ports)
Housing Metal
Power Adapter/Power DC 12V 1A / 110/220 AC
Operation Temperature 0~40 ℃
Storage Temperature -20 ~ 60 ℃
Humidity 0~90%, Non-Condensing
Size 19" Rack Mount / 1U
Weight(kg) 15
Dimension 23"(L) x 19"(W) x 1.75"(H)

Ordering Information
Model no. Description
 Net / gross weight
BHK115e 1U height, 15" TFT LCD monitor keyboard drawer
 15kg / 20kg
BHK115-8e 1U height, 15" TFT LCD monitor keyboard drawer with 8 port KVM switch
 16kg / 21kg
BHK117e 1U height, 17" TFT LCD monitor
keyboard drawer
15kg / 20kg
BKP117-8e 1U height, 17" TFT LCD monitor keyboard drawer with 8 port KVM switch
16kg / 21kg
BKP117-16e

1U height, 17" TFT LCD monitor keyboard drawer with 16 port KVM switch
17kg / 22kg
