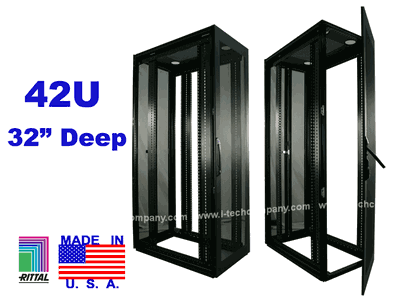

42U 80"H x 32"W x 32"D Server Rack Cabinet Enclosures (Model: R842-32)

42U 80"H x 32"W x 32"D Server Rack Cabinet Enclosures (Model: R842-32)
  • Front view 1
  • Front view 2
  • Front View 3
  • Front Door
  • Side View 1
  • Side View 2
  • Bottom Opening
  • Rear Split Door
  • Top View Cable Entry
  • Unit Mark
  • Packaging

42U 80"H x 32"W x 32"D Server Rack Cabinet Enclosures (Model: R842-32)

Inquiry/Quote Request
R842-32
  • Overview
42U Network Cabinet Specifications:

External Dimensions: 78.74"H x 31.50"W x 31.50"D
Internal Dimensions: 75.27"H x 28.03"W x 28.03"D
Mounting Rails: EIA 19"W, 2 pairs with square holes

This 42U Rittal TS8 Network Cabinet includes: Viewing Perforated Front Door, Split Perforated Rear Door and a Perforated Top Panel with Cable Entry, (50) cage nuts, (100) Mounting Screws & (4) Leveling Feet.

The Rittal Server Racks, are manufactured to be compatible
with most network and computer server equipment including: Compaq, Dell, HP, IBM, and Sun.
Designed specifically for the data center, the TS8 is a modern enclosure offering strength and stability for virtually any server environment. While intended for the data center, it is just as well suited as a stand-alone enclosure. Rittal’s patented 16-fold continuously welded frame, delivers 30% more dimensional stability, guaranteed to beat the competition on strength alone.

Attractive and Highly Functional
Rittal's TS8 server enclosure – A modern design that features the utmost in strength for virtually any server environment.
Design:
The TS8 server enclosure features modern, attractive aesthetics perfect for a highly functional server application.		 Applications:
• Universal server enclosures
• Multiple vendor environments
• Storage equipment
• Termination equipment
• Network equipment
Environments:
• Data centers
• MDC/IDC
• Wiring closets
• Office environments
• Central offices
• Co-location and application environments		 Features:
• Contemporary, sleek appearance
• Multiple vendor equipment compatibility
• Full line of accessories
• Family of sizes and styles
• Excellent heat dissipation
• Strong frame structure
• Highly functional and stylish, value packed and competitively priced


Specifications
Frame System - Multi-Fold Frame Design:
• Steel frame - strength and rigidity
• Torsion free structure
• Multiple internal surfaces and points for mounting
• Maximum internal volume for footprint
• External access to all installation points for doors, walls and baying
• Maximum load bearing capacity - 907 kg (2,000 lbs)
• Single or split rear doors		 External Surfaces - Doors and Walls:
• Secure to external surfaces of frame
• Doors can be easily removed or reversed
• Sidewalls can be screwed on, locked in place or hinged to provide side door access
• Internal door hinge and lock points for maximum security
• Door stiffener to stabilize door and provide additional mounting surfaces
• Maximum perforated area meets or exceeds server manufacturer specifications for air flow
• Ground studs on all surfaces
• External surfaces do not affect load bearing capacity - same ratings with or without panels
• Available in RAL 7035 (light grey) or sand texture black
• Fully perforated front and split-rear door

Vertical Mounting Rails:
• Fully depth adjustable and maintain load capacity regardless of where the rails are positioned
• Floating installation system - vertical rails are not secured to frame members or lateral support channels; can be adjusted independently
• "Z" shaped, multi-fold profile - high load bearing capacity and multiple mounting surfaces
• 19" mounting capacity in 24" cabinets, 19" and 23" mounting capacity in 28", 32" cabinets
• U markings on front and rear surfaces of each rail		 Key Accessories:
• Sidewalls
• Door Mount Server Fan Panel
• Baying Kits
• Toolless Shelves - 482.6 mm (19") Rack Mount
• Casters
• Cable Management Hardware - D Rings, Velcro Straps, Mounting Plates, Manage-IT
• Power Strips - 15, 20, 30 Amp; Vertical or Rack Mount
• CMC-TC - Enclosure Monitoring System
• Bolt Down Kits
• Toolless Blanking Panels
