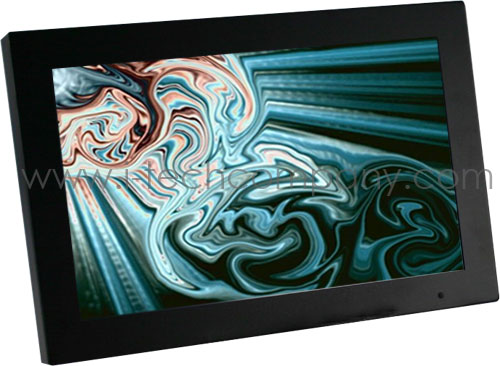

17" Chassis Mount Widescreen LCD Monitor VGA, Optional AV, DVI inputs, Touch Screen in Chassis Mount 17" LCD display (Model: WCHW1700A1)

17" Chassis Mount Widescreen LCD Monitor VGA, Optional AV, DVI inputs, Touch Screen in Chassis Mount 17" LCD display (Model: WCHW1700A1)
  • Front View
  • ISO Front View
  • Side View
  • Rear View
  • Input/Output
  • Accessories

17" Chassis Mount Widescreen LCD Monitor VGA, Optional AV, DVI inputs, Touch Screen in Chassis Mount 17" LCD display (Model: WCHW1700A1)

WCHW1700A1
  • Overview
  • Download
Product discontinues. Contact us at Info@iTechLCD.com for replacement item.
Specification
Model Name WCHW1700A1

Screen Size 17"(16:9)

Active Display Area (mm) 370.56(H)x222.34(V)

Pixel Pitch (mm) 0.2895mmX0.2895mm

Display Resolution (pixel) 1280x768(WXGA)

Contrast Ratio 600:1(typ.)

Display Color 16.2M(6bits+FRC)

Brightness (CD/m^2)

450(typ.)


Viewing Angles (CR >=10) -89~89(H); -89~89(V)

Synchronization Range_Horizontal / Vertical 31.5~60.0KHz/60~75Hz

Recommended Resolution 1280x800@60Hz, 75Hz

Signal Connector 15 pin D-sub

Power Source AC100~240V, Universal, 10%

Power Consumption 45W typical, normal operation

Power Management VESA DPMS Compliant

Plug & Play VESA DDC 1/2B

Video Input (optional) S-Video, Composite

DVI Input (optional) Yes

Optional Touch Screen

Resistive


Remark: WCHW1700A1 series = VGA input only
              WCHW1700A1AV series = VGA + Video input


*Due to Panel material's deviation, different panel supplier will set different specific variance range to optical characteristics. The factors of time used, Lamp current, Ambient temperature will influence the optical measurements.
