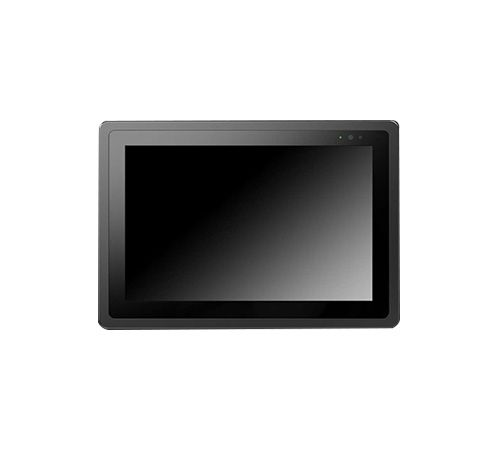

10.1" 1500nits IP65 Front Panel 4K HDMI 1.4b; VGA, w/ Optical Bonding 10-point Capacitive Touch (Model: LPMW1010HB2-PCAP)

10.1" 1500nits IP65 Rating Front Panel Monitor 1x 4K HDMI 1.4b; 1x VGA, with Optical Bonding 10-point Capacitive Touch

10.1" 1500nits IP65 Rating Front Panel Monitor 1x 4K HDMI 1.4b; 1x VGA, with Optical Bonding 10-point Capacitive Touch

Inquiry/Quote Request
LPMW1010HB2-PCAP
  • Overview
  • Specifications
  • Download



Features:
  • IP65 Rating for Front Panel
  • 50,000-Hour LED Panel Life Time
  • Auto Dimming
  • Anti-Drop design for USB-C and HDMI cables
  • Metal housing
  • Multiple Mounts (75mm VESA, Embedded with Waterproof Foam, Wall mounts, etc.)
  • 75mm VESA Folding Bracket
  • HDMI Cable Lock:
  • Remote Control:
  • Waterproof Foam for Embedded Mounting
DISPLAY Touch Optical Bonding, 10-point Capacitive
Panel 10.1"
Physical Resolution 1920x1080
Aspect Ratio 16:10
Brightness 1500nits
Contrast 1000:1
Viewing Angle 170°H/170°V
LED Panel Life Time 50000h
INPUT HDMI 1x 4K HDMI 1.4b
VGA 1x VGA
USB 1*USB Type-C (For touch, video signal or power)
 SUPPORTED FORMATS HDMI 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60...
VGA 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60...
USB Type-C 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60...
AUDIO IN/OUT Speaker 1
HDMI Available
Ear Jack 3.5mm - 2ch 48kHz 24-bit
POWER Input Voltage DC 12-24V
Power Consumption <19W(12V)
ENVIRONMENT IP Rating IP65 Front Panel
Operating Temperature -20°C~70°C
Storage Temperature -30°C~80°C
OTHER Dimension(LWD) 264mm x 183mm x 35.6mm
Weight 1.31kg
