10.1" LED-Backlight, High-Brightness (800nits) Screen w/ capacitive touch, outdoor viewable, digital pen support Qualcomm Octa-core Processor Android Operating System (Model: DVMW1010-AO)

Main Feature

- 10.1" Full-HD capacitive touch screen, 800 nits, digital pen support
- Qualcomm octa-core processor
- Android operating system
- High capacity, hot-swappable battery pack
- Built-in back camera
- IP65 rated and MIL-STD-810G certified

Overview
Specifications
Download
Contact Sales

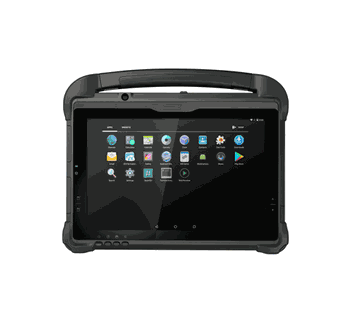

The DVM Rugged Tablet features the integration of a high brightness 10.1" capacitive touch screen, Android operating system, and a high performance yet energy-efficient octa-core processor within a slim, lightweight, durable package. With a built-in back camera, Wi-Fi and Bluetooth, as well as options for front camera, barcode scanner, long range Bluetooth and GPS, this rugged tablet offers seamless information capture and transmission for improved workflow. Rated IP65, MIL-STD-810G and HERO certified with wide temperature range, the DVM Rugged Tablet provides reliable operation in harsh, mission-critical environments.

Features:

10.1" Full-HD capacitive touch screen, 800 nits, digital pen support
Qualcomm octa-core processor
Android operating system
High capacity, hot-swappable battery pack
Built-in back camera
IP65 rated and MIL-STD-810G certified
HERO (Hazard of Electromagnetic Radiation to Ordnance) certified
Detachable keyboard option for 2-in-1 applications

Major Options:

Front camera
2D barcode scanner; reads 1D also
NFC/RFID reader
GPS
4G LTE/AWS

SYSTEM
CPU	Qualcomm Octa-Core, 2.0GHz
RAM	4GB
Storage	64GB flash
Operating System	Android 9.0 and 10
Display	10.1" LED-backlight, high-brightness (800 nits) screen with capacitive touch, outdoor viewable
Display Resolution	1920 x 1200
Network Interface	Wi-Fi 802.11ac, 2.4GHz/ 5GHz dual band; Bluetooth 4.1 LE
Control Switch and Buttons	1 power button, 2 brightness control buttons, 5 programmable buttons
Microphone	Built-in microphone
Speaker	Built-in speaker
Back Camera	8 megapixel back camera
I/O Ports
USB Port	USB 3.0 x 1, USB Type C x 1 (data transmitting and charging)
Headset Jack	1 (3.5mm)
SD Slot	1 micro SD card slot
Ethernet	Ethernet 10/ 100/ 1000MB Base-T LAN

MECHANICAL AND ENVIRONMENTAL
AC/DC Adapter	Input: 100 - 240V AC; Output: 20V DC, 3.25A
Battery Pack	Hot swappable battery, 7.6V, 6000mAh
Enclosure	ABS + PC plastics and magnesium-aluminum alloy
Dimensions (H x W x D)	7.8 x 11 x 0.86 in/ 198 x 280 x 21.9 mm
Weight	3.1 lbs/ 1.4 kg
Durability	IP65 and MIL-STD-810G certified
Hazard of Electromagnetic Radiation to Ordnance (HERO) Testing	Yes
Regulatory	FCC Class B, CE, RoHS compliant
Temperature	Operation: -10°C to 50°C (14°F to 122°F) Storage: -55°C to 70°C (-67°F to 158°F)
Humidity	0% - 90% non-condensing
MAJOR OPTIONS
Barcode Scanner	2D barcode scanner; reads 1D also
Front Camera	2 megapixel front camera
NFC/RFID READER	HF 13.56MHz, ISO standard 15693, 14443A(B) & 18000-3 mode-1
GPS	Yes
Mobile Broadband	4G LTE/AWS
