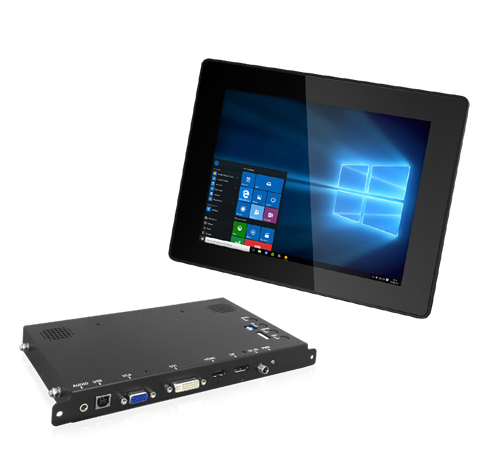

Modularized Touch Monitor 10.4" LED TFT LCD 1024x768 w/ Projected Capacitive Touch Screen (Model:QPD1040X)

Modularized Touch Monitor 10.4" LED TFT LCD 1024x768 w/ Projected Capacitive Touch Screen (Model:QPD1040X)

Modularized Touch Monitor 10.4" LED TFT LCD 1024x768 w/ Projected Capacitive Touch Screen (Model:QPD1040X)

Main Feature

    • 10.4" G grade LED LCD panel for long life cycle and your tough working environments
    • Different Display Modules for every project requirements
    • Modularized Design for different application needs and minimal system down time during maintenance
    • Solid and rugged Display Construction withstands punishments from all environments
    • True Flat multi Touch with front side IP65 certification
    • Hidden USB to protect USB Key/Dongle
    • 4 Different mounting methods designed in for ultimate application flexibility
Inquiry/Quote Request
QPD1040X
  • Specifications
  • Download
  • Contact Sales
Display Module 10.4"
I/O 1 x USB 2.0 Hidden for USB Dongle
Touch screen Projected Capacitive Touch
LCD 10.4" TFT XVGA
Resolution 1024 x 768, 16.2M Colors
Luminance (cd/m2) 350
Viewing Angle 160°
Backlight Lifetime 50,000hrs/ LED
Mechanical
Construction Heavy-duty steel chassis (Black), Aluminum Front Bezel
Vibration 5-17Hz, 0.1" double amplitude peak to peak, 1.5G acceleration peak to peak
Shock 10G acceleration peak to peak (11ms)?
Rating IP 65 compliant front bezel
Qualification  Formal certifcation CE I FCC Class B
Mounting Panel / VESA 100 / Wall / Clamp Type
Dimension 294 x 52.9 x 226 mm
Packing Dimension 406 x 158 x 415 mm
System Weight (N.W.) 1.8 KG
Weight with Packing (G.W.) 6.2 KG
Optional Order
Mounting Clamp Type Mount

System Box Module



I/O    		 USB x 1 (For Touch)
VGA x 1
HDMI 1.4a x 1
DisplayPort 1.2 x 1
Line Out x 1
Power Requirement DC Jack, +24V
Mechanical
Construction Heavy-duty steel chassis (Black)
Operation Temp. 32°F ~ 104°F (0°C ~ 40°C) with Ambient Air
Storage Temp. -22°F ~ 175°F (-30°C ~ 80°C)
Relative Humidity 10~90% @40°C, Non-condensing
Backlight Lifetime 50,000hrs / LED
Vibration 5-17Hz, 0.1" double amplitude peak to peak, 1.5G acceleration peak to peak
Shock 10G acceleration peak to peak (11ms)
Rating IP 65 compliant front bezel
Qualification Formal certification CE/FCC Class B
Mounting Panel/ VESA 100/ Wall/ Clamp Type
Dimension 128 x 25.3 x 268 mm
Packing Dimension 580 x 180 x 420 mm
System Weight(N.W.) 0.85 KG
Weight with Packing(G.W.) 2.05 KG
Optional Order
Power AC to PWR Terminal Connector
