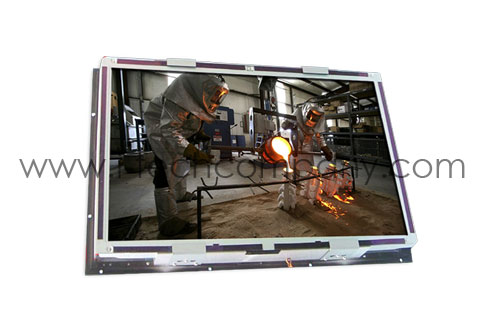

High Brightness Open frame Wide 10.2" LCD Monitor, 1024x600, 900nits w/ VGA+DVI , 100~240V AC-in, -20-60C, Max 6.5W (Model: GOPW1020HB)

High Brightness Open frame, Wide Screen 10.2" LCD monitor, 1024 x 600, 900 nits, 400:1 with VGA+DVI , 100~240V AC-in, Operating temp -20 to 60C, Max 6.5W

High Brightness Open frame, Wide Screen 10.2" LCD monitor, 1024 x 600, 900 nits, 400:1 with VGA+DVI , 100~240V AC-in, Operating temp -20 to 60C, Max 6.5W

Inquiry/Quote Request
GOPW1020HB
  • Overview
  • Download

Features:
  • LED backlight
  • 900 nits high brightness display.
  • Wide-SVGA (1024x600 pixels) resolution
  • RoHS Compliance
  • 5 keys OSD controls
  • VGA and DVI Video Input and auto detection video system.
  • Quick and easy integrations for Client solutions


Specifications:
The following items are characteristic summary on the table at 25oC condition
Item Specification Unit Note
LCD panel Active screen size 222.72(H) x 130.5(V) (10.2 inches) mm
Resolution 1024 (H) x 600(V) pixels
Pixels pitch 0.2175(H) x 0.2175(V) mm
Pixel arrangement RGB vertical stripe
Display mode TN mode, normally white
Display colors 262k ( RGB 6-bit) colors
Brightness 900 nits 1
Contrast Ratio 400 : 1
Response time 20 ms
Aspect Ration 16 : 10
Graphic Input Connector D-Sub 15 pins, DVI
Power Power Input 12 V Vdc
Power
consumption 		Operation Mode 6.5 (max) W
Saving Mode 1.5 (max) W
Physical Dimension Reference to drawing mm
Weight   KG
Environment Operating
Temperature 		-20 ~ 60 °C 2
Storage Temperature -30 ~ 70 °c 3
Reliability Backlight MTBF 40,000 hours
Warranty 12 years
ON / OFF cycle 36,000 cycle
DCC Plug & Play DDC 2B Compliance
Function OSD key 5 keys(Power ,Enter ,▲ ,T ,Menu)
Wall mount VESA standard 75 x 75 mm
Note 1: There are ~10% brightness reduced after touch panel glass.
Note 2: The relative humidity must not exceed 90% non-condensing at temperature of 40 0C or less.
              At temperature greater than 40 0C, the wet bulb temperature must not exceed 39%.
Note 3: The unit should not be exposed to corrosive chemicals.
