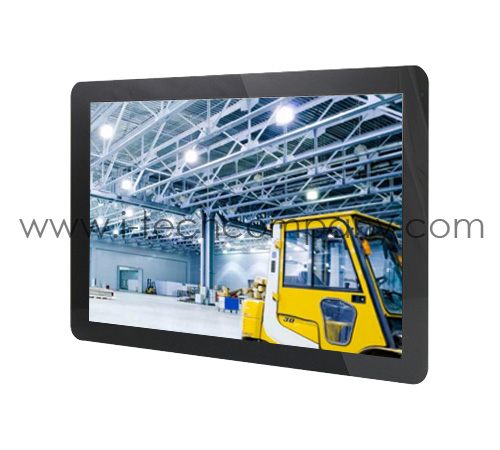

10.1" open frame tablet, BayTrail-T/CR Quad Core Z3735F, 32GB eMMC, 2GB RAM, Windows 8.1 Embedded Industry (Model: VOPC1010)

10.1" open frame tablet, BayTrail-T/CR Quad Core Z3735F, 32GB eMMC, 2GB RAM, Windows 8.1 Embedded Industry (Model: VOPC1010)

10.1" open frame tablet, BayTrail-T/CR Quad Core Z3735F, 32GB eMMC, 2GB RAM, Windows 8.1 Embedded Industry (Model: VOPC1010)

Main Feature

    • Intel Atom Processor Z3735F
    • 2GB RAM
    • 8GB or 32GB eMMC
    • PCAP Touch
    • 10/100 Ethernet (PXE Boot)
    • Touch board interface (Power/ Brightness/ Volume/ LED)
    • 16Bit programmable GPIO
    • RS232(TX/RX) or RS485
    • Typical DC 19V Input, Optional 12V & 24V support
    • Optional Power Over Ethernet 802.3AT (10" only)
Inquiry/Quote Request
VOPC1010
  • Specifications
  • Download
Board Specification
Processor Intel Atom Z3735F
System Memory 2GB DDR3L RAM
Storage 8GB or 32GB eMMC
RF
WIFI WIFI 802.11 b/g/n/
System Specification
Internal I/O
MIO 1 x RS232 (TX/RX) / RS485 header
1 x 16 bit GPIO header
1 x USB header
1 x I2C header (Optional)
1 x eDP & Dual channel 24bit LVDS 1 x backlight control & power
2 x speaker header (1.2W stereo)
1 x A-MIC header
1 x Touch Button connector header
1 x DC input 4pin header
External I/O
USB 2 x USB 2.0
1 x micro USB Client (Android only)
LAN 1 x 10/100 Ethernet
Display 1 x HDMI
Audio 1 x Head phone jack
SD 1 x Micro SD slot
Power-in 1 x DC jack

Mechanical & Environmental
Power Requirement DC 12V ~ 24V
  DC Jack
Power Type DC input 4pin header
  Optional POE 802.3AT (10” only)
Operating Temp. 0°C ~ 40°C
Storage Temp. -20°C ~ 60°C
Operating Humidity 0% ~ 90% Relative Humidity, Non-condensing

LCD Characters
Panel
Resolution 1280 x 800
Luminance 350
View Angle (H+-/V+-) 85°/85°
Touch
Touch PCAP
Surface hardness 6H
