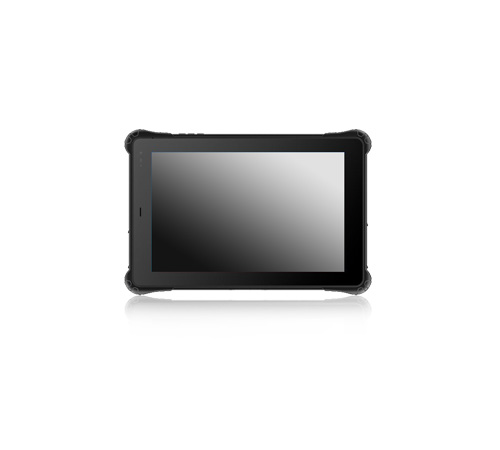

10.1" Windows Rugged Tablet, 800*1280@750nit, N5100, 4GB+64GB, RJ45, 7.6V@5000mAh Battery (Model: RRDW101)

10.1" Windows Rugged Tablet, 800*1280@750nit, N5100, 4GB+64GB, RJ45, 7.6V@5000mAh Battery

10.1" Windows Rugged Tablet, 800*1280@750nit, N5100, 4GB+64GB, RJ45, 7.6V@5000mAh Battery

Inquiry/Quote Request
RRDW101
  • Overview
  • Specifications
  • Download

Features:
  • 10.1" rugged tablet with 11th Gen Intel Celeron N5100 processor and Windows 10/11
  • Integrated 1D/2D Barcode Reader, NFC/RFID, Fingerprint Module
  • Support 4G LTE, WLAN, BT & GNSS
  • I/O Interface: RS232/RJ45 Ethernet/USB/HDMI
  • Removable high-capacity battery design
  • IP67 and 1.22m drop certified

Standard Configuration
Dimension 249.7x18x23.1mm
Weight 1200g
Color black
LCD 10.1-inch 16:10 TFT IPS LCD,800*1280,  750nits
Touchscreen 10 point capacitive touch screen, G+G, gorilla glass, hardness 7H
Camera Front 5MP fixed focus camera,
Rear 8MP autofocus camera with flash
Speaker 8Ω/1W,Stereo dual speakers
MIC Built-in microphone
Battery Removable polymer Li-ion battery,7.6V 5000mAh
Battery Life 6 hours (1080P video is played at 50% brightness by default)
System Hardware Configuration
CPU Intel JASPER LAKE N5100,4 MB SmartCache,Up to 2.8GHz
GPU Intel HD Graphics Gen 11 LP
RAM 4GB LDDR4(Optional 8GB)
ROM 64GB SSD(Optional 128GB/256GB)
Sensor G-sensor
Network
WIFI WIFI 802.11(a/b/g/n/ac) 2.4G+5.8G
Bluetooth BT4.2 (BLE) class1, Transmission distance,10m
4G LTE FDD: B1/B3/B5/B7/B8/B20
LTE-TDD B40
WCDMA: B1/B5/B8 GSM: 900/1800
GPS GPS/Glonass/beidou(G+G+B)

Data Collection (Optional)
NFC 13.56MHz,Support ISO/IEC 14443A/14443B/
15693/18092/mifare,Card reading distance:2~5cm
RFID HF:13.56MHZ,Support ISO/IEC 14443A/14443B/15693
UHF: PR9200 / R2000
2D Scan Reader Optical resolution: 5mil,scanning speed: 50 times/s
Fingerprint ISO/FBI Certification
I/O Interface
TF Card TF card slot x1,Up to 256GB
SIM Card Micro SIM card slot x1
USB Type-C Type-C x1,Charging and data transmission
USB Type-A USB 3.0 x1
Earphone Jack 3.5mm standard earphone jack x1
HDMI Mini HDMI 1.4a x1
Ethernet RJ45 x1,10/100/1000M
Pogo Pin 12pin*1
Aviation Plug Aviation Plug x2(Optional),USB/RS232/DC-IN (three choose two)
Keys and Indicators
Function Key Function key x2
Power Key Power key x1
Volume Key Volume+ x1 ,Volume - x1
Indicator Battery indicator light x1
Software
OS Windows 10/11
Reliability
Drop 1.22m drop
Dustproof and Waterproof IP67
Operate Temperature -10 °C ~ 50 °C
Store Temperature -20 °C ~ 60 °C
OSD Contact discharge :±5kV, Air discharge:±10kV
Humidity 95% Non-Condensing
