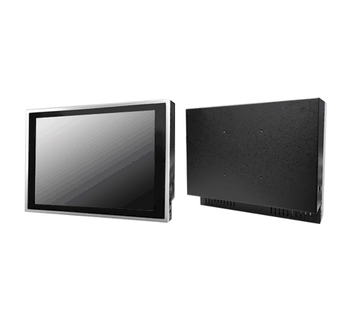

EZCH1040WTHB-PCAP
EZCH1040WTHB-PCAP
Main Feature
- Modular construction for more flexibility in terms of product configuration as well easy maintenance
- Optional build-in touch screen for interactive application
- VGA connector with optional AV,SV,AV-Looping
- Available with auto-brightness sensor offers application in day and night
- Complete custom design/solution for OEM customers
X
Inquiry/Quote Request
- Specifications
- Download
- Contact Sales
| Panel | Cell Type / Glass Surface | TFT LCD / Black Anti-Glare, low reflection coating | |
| Aspect Ratio / Size | 4 : 3 / 10.4" viewable diagonal area | ||
| Active Area / Pixel Pitch | 211.2(H) x 158.4(V) mm / 0.264(H) x 0.264(V) mm | ||
| Native Resolution / Colors | 800(H) x 600(V) / 262 K | ||
| Brightness / Contrast | 350 cd/m2 (typ) / 600 : 1 | ||
| Response Time | < 35 ms | ||
| Viewing Angle (typical) | H. 160° (- 80° ~ + 80°) , V. 120° (- 60° ~ + 60°) | ||
| Light Source | LED backlight, Long life, 35,000 hrs (typ) | ||
| Input Sources | PC System | Signal | Analog RGB (0.7/1.0 Vp-p, 75 ohms) |
| Sync | Separate Sync, Composite Sync, Sync On Green | ||
| Frequency | Fh : 30 - 82Khz , Fv : 50 -75Hz | ||
| Audio System | 2W speaker x 2 | ||
| Input Terminals | 1 x VGA (15 Pin Female D-Sub), 1 x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug | ||
| Convenient Features | Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B) | ||
| OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing) | |||
| Power | 12V DC in | ||
| Power Consumption | Operation / Power Saving | 9.375 watt , < 2 watt (Support DPMS) | |
| Operating Condition | Temperature / Humidity | - 30°C ~ 70°C (22°F ~ 158°F) , 10% ~ 90% (no condensation) | |
| Storage Condition | Temperature / Humidity | - 30°C ~ 80°C (22°F ~ 176°F) , 10% ~ 90% (no condensation) | |
| Certification | FCC , CE | ||
| Dimensions | Physical | Please refer to Drawing | |
| Carton | W x H x D = TBD | ||
| Weight | N.W. / G.W. | 3.5 Kgs / 4.5 Kgs | |
| Container Loaded | 20ft / 40ft / 40ft HQ | TBD (Sets , By pallet) | |
OPTIONS:
- Touch: Projected Capacitive Touch and Protected glass
- Video/TV: Video/TV, SV + AV, SV + AV + AV_Looping, SV + AV + TV
- Enhanced Panel: Panel with LED backlight, High brightness panel, Wide Temperature, Sunlight Readable
- Others optional features: Digital Signage (Standalone), Networking Digital Signage, Motion Sensor, Light Sensor, Auto-Dimming
