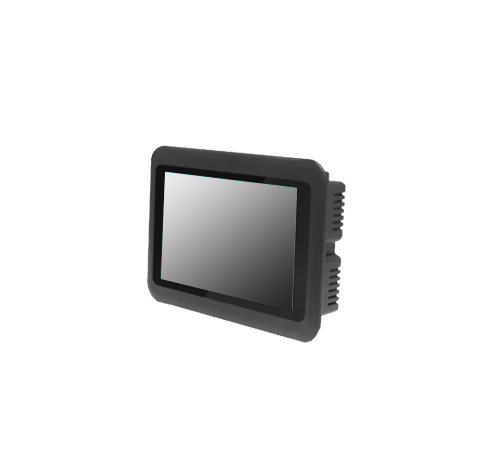

10.1" WUXGA Zero Bezel True Flat LCD Monitor, 1920x1200, 350nits, 600:1, 25ms with PCT Touch (Model: EZBW1010X-PCT)

w10.1" WUXGA Zero Bezel True Flat LCD Monitor, 1920 x 1200, Brightness : 350nits , Contrast: 600:1, Response Time: 25ms, Viewing Angle: 160 / 160

- Modularize mechanical design provides flexible product configuration and easy maintenance
- Optional build-in touch screen for interactive application
- Available with auto-brightness sensor offers application in day and night
- VGA connector with optional AV.SV.AV-Looping
- With PCT touch

Panel	Cell Type / Glass Surface	TFT LCD / Black Anti-Glare, low reflection coating
	Aspect Ratio / Size	Wide /10.1" viewable diagonal area
	Active Area / Pixel Pitch	216.81(H) x 135.5(V) mm/0.113(H) x 0.113(V) mm
	Native Resolution / Colors	1920(H) x1200(V)/16.7M
	Brightness / Contrast	350 cd/m2 (typ) / 600 : 1
	Response Time	<25ms
	Viewing Angle (typical)	H.1600 (- 80° ~ + 80°) , V 160°(- 80° ~ + 80°)
	Light Source	LED backlight, Long life, 35,000 hrs (typ)
Input Sources	PC System	Signal	Analog RGB (0.7/1.0 Vp.p, 75 ohms)
		Sync	Separate Sync, Composite Sync, Sync On Green
		Frequency	Fh : 30 - 82Khz , Fv: 50 -75Hz
	Audio System	2W speaker x 2
Input Terminals	1 x VGA (15 Pin Female D-Sub), 1 x PC Audio (Stereo Headphone Jack), 1 x DC Power Plug
Convenient Features	Auto Calibration , Back Light Adjustment, Plug&Play (VESADDC/CI, DDC 2B)
	OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
Power	12V DC in
Power Consumption	Operation / Power Saving	8.75 watt, < 1 watt (Support DPMS)
Operating Condition	Temperature / Humidity	0°C ~ 50°C (32°F ~ 122°F), 10% ~ 90% (no condensation)
Storage Condition	Temperature / Humidity	- 20°C ~ 60°C (- 4°F ~ 140°F), 10% ~ 90% (no condensation)
Certification		FCC,CE
Dimensions	Physical	Please refer to Drawing
	Carton	WxHxD=TBD
Weight	N.W./G.W.	3.5Kgs/4.5Kgs
Container Loaded	20ft / 40ft / 40ft HQ	TBD (Sets , By pallet)

Projected CapacitiveTouch - MultiTouch(6mm Anti-Vandal glass)	Transparency	90%±2%
	Resolution	2048 x 2048
	Support Points	Dual Points
	Touch Method	Finger, gloved hand or any other pointer
