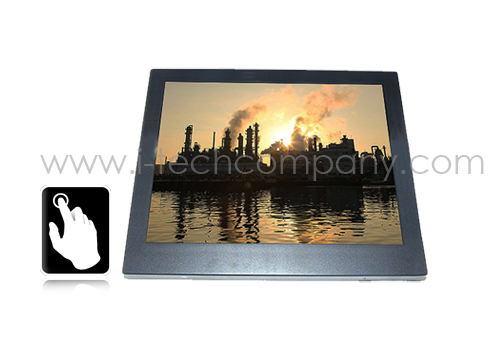

12.1" LED Sunlight Readable High Brightness Chassis Mount LCD Monitor w/ VGA+HDMI+DVI Input (Model: YCH1210W2THB-TR-DC)
- Overview
- Specifications
- Download
- High contrast color TFT-LCD Monitor support resolution up to 1024*768.
- Power management system conforms to VESA DPMS and EPA Energy Star standards.
- Full consideration for touch screen installation and application.
- Universal Power adapter.
- Support DDC1 & DDC2B for Plug & Play compatibility.
- Advanced OSD control for picture quality adjustment.
- Detachable stand for wall-mounting adjustment.
- Heavy duty monitor with aluminum housing.
- Custom design by request.
12.1" 1024x768, 1000nits LED Sunlight Readable High Brightness Wide Temperature -30C ~ 85C Rugged Industrial Chassis/Vesa Mount LCD Monitor. Power Consumption 12 Watts, 9-36DC input with VGA+DVI+HDMI Input with 5 Wires Resistive Touch with USB Controller with Aluminum Housing
X
Inquiry/Quote Request
Features: |
| Panel Type | 12.1-inch TFT LCD |
| Screen Diagonal | 12.1-inch |
| Active Display Area (mm) | 245.76 (H) x 184.32 (V) |
| Pixel Pitch (mm) | 0.24 x 0.24 |
| Number of Pixels | 1024 * 768 |
| Contrast Ratio | 700:1 |
| Color Arrangement | R.G.B.W Rectangle |
| Brightness (cd/m²) | 1000 cd/m² (without touch screen) |
| Viewing Angle(Typ.) | 80/80/80/80 (R/L/U/D) |
| Signal Connector | 15 PIN D-Sub, DVI, HDMI |
| Power Source | AC100 ~ 240V, Universal +/- 10% |
| Power Management | VESA DPMS Compliant |
| Operating Temperature | -30 ~ 85°C |
| Plug & Play | VESA DDC 1/2B |
| Touch Type | 5-Wires Resistive Touch Screen |
| Transparency | > 80% (typ.) |
| Hardness of surface | 3H |
| Linearity | ±1.5%(max.) |
