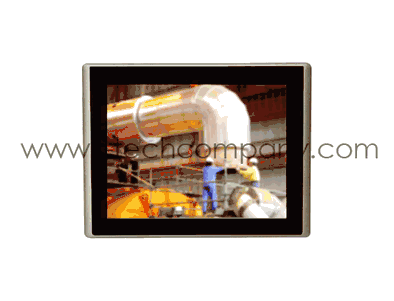

12.1" SVGA Fanless HMI barebone Aluminum chassis with Atom N2600 and Resistive Touch (Model: APC1210-AT)

*SYSTEM*
Processor	Intel Atom Cedar View N2600 1.6GHz Dual Core Processors / Intel Atom D2550 1.8GHz (Optional)
System Memory	Onboard DDR3 2GB 800 MHz / 4GB (Optional)
System Chipset	Intel NM10
Power Consumption	18W
IO Port
USB	2 x USB 2.0 type A, USB4/5
Serial/Parallel	x RS-232/422/485 DB-9, COM1, Default RS-232 1 x RS-232 DB-9, COM2
Audio	1 x Line out phone jack
LAN	2 x GbE RJ-45
Power	3 pins terminal block connector, DC Power input
Storage Space
HDD	1 x 2.5 SATA 2
Movable device	x Internal SD slot
Expansion
On board expansion bus	1 x Mini-PCIe half size
*Display*
Display Type	12TFT-LCD
Max. Resolution	800x600
Max. Color	16.2M
Brightness	330
View Angle	H:160° / V:140°

*TOUCHSCREEN (option)*
Type	Resistive Touch / Projected Capacitive Touch (for P model)
Light Transmission	90%
Interface	USB
*POWER SUPPLY*
Power Input	9~36V DC
*MECHANICAL*
Construction	Sliver aluminum front bezel and chassis
IP Rating	IP65 front panel
Mounting	Panel mounting, VESA 100 x 100
Dimension	319mm x 245mm x 52mm
Net Weight	2.5
*ENVIRONMENTAL*
Operating Temperature	0~50 OC
Storage Temperature	-20~60 OC
Storage Humidity	10 to 90%@ 40˚C, non-condensing
Certificate	CE / FCC Class A
Operating System Support
Windows XP pro Windows XP Embedded Windows Embedded CE6.0 Windows 7 pro for Embedded Windows Embedded standard 7 (Win 7 support 3D Graphic function)
