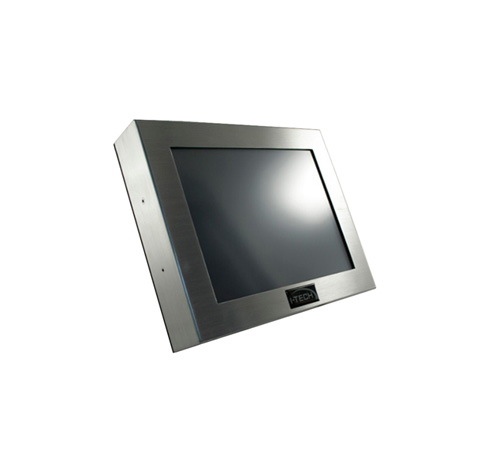

12.1" 304 Chassis Stainless Steel Chassis Full IP66, VGA, 12VDC w/ external 100-240VAC Power Adapter (Model: ECH1210B-SIP-C1)

12.1" Industrial Panel 304 Chassis Stainless Steel Chassis/Surface Mount, Water/Dust proof / 1024x768, 450nits Full IP66, VGA and 12VDC with external 100-240VAC Power Adapter

12.1" Industrial Panel / 1024x768 / 450nits
Stainless 304 Enclosures with Full IP66 / VESA mount
AR Glass
I/O ( all connectors are waterproof connectors / 6ft long ) : VGA and 12VDC with external 100-240VAC power adapter
Optional with auto-brightness sensor offers application in day and night.
Optional to built-in touch screen for interactive application

Panel	Cell Type / Glass Surface	TFT LCD / Black Anti-Glare, low reflection coating
	Aspect Ratio / Size	4:3 / 15" viewable diagonal area
	Active Area / Pixel Pitch	304.13(H) x 228.10(V) mm / 0.297(H) x 0.297(V) mm
	Native Resolution / Colors	1024(H) x768(V) / 16.2 Million
	Brightness / Contrast	450 cd/m2 (typ) / 500 :1
	Response Time	^ 12 ms
	Viewing Angle (typical)	H. 130° (- 65° ~ + 65°) , V 100°(- 55° ~ + 45°)
	Light Source	CCFL , Long life, 50,000 hrs (typ)
Input Sources	PC System	Signal	Analog RGB (0.7/1.0 Vp.p, 75 ohms)
		Sync	Separate Sync, Composite Sync, Sync On Green
		Frequency	Fh: 30 - 82Khz , Fv: 50 -75Hz
	Audio System	Optinal
Input Terminals	VGA
Convenient Features	Auto Calibration , Back Light Adjustment, Plug&Play (VESA DDC/CI, DDC 2B)
	OSD Multi-Languages , Wall Mount Ready (VESA 100 x 100 mm)
Power	12V DC with external 100-240VAC Power Adapter
Power Consumption	Operation / Power Saving	20 watt, < 2 watt (Support DPMS)
Operating Condition	Temperature / Humidity	0°C ~ 50°C (32°F ~ 122°F), 10% ~ 90% (no condensation)
Storage Condition	Temperature / Humidity	- 20°C ~ 60°C (- 4°F ~ 140°F), 10% ~ 90% (no condensation)
Certification		FCC,CE
Dimensions	Physical	With Base(W x H x D): TBD
		Without Base(W x H x D): 392.5 x 316.8 x 74.0 (mm)
	Carton	W x H x D = TBD
Weight	N.W. / G.W.	8.0 Kgs/10.0 Kgs
Container Loaded	20ft / 40ft / 40ft HQ	TBD (Sets , By pallet)
