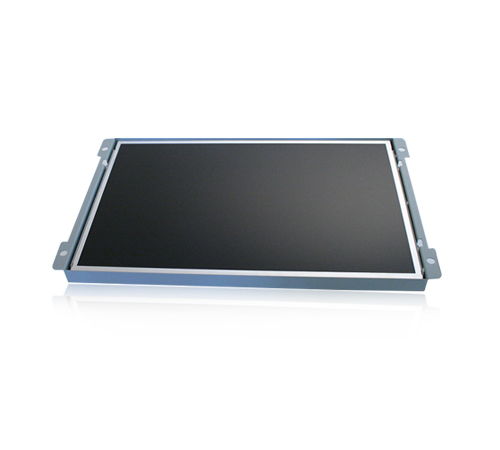

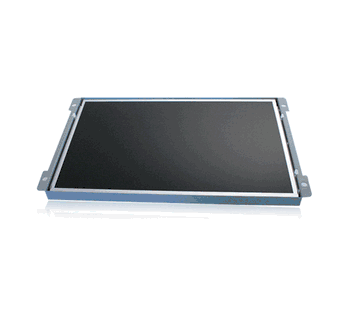

Wide 13.3" Open Frame LCD Display for MRI Machine LED-300nits w/ VGA+DVI-D signal Input Ports (Model: EOP1330HD-IMR01)

Wide 13.3" Open Frame LCD display for MRI Machine 1920x1080, LED-300nits with VGA+DVI-D signal input ports

Wide 13.3" Open Frame LCD display for MRI Machine 1920x1080, LED-300nits with VGA+DVI-D signal input ports

Main Feature

    • 1920x1080, LED-300nits.
    • Without touch or protected glass.
    • All I/O ports facing down.
    • Mounting Flanges on left/Right side
    • w/o-FCC & CE certificate
Inquiry/Quote Request
EOP1330HD-IMR01
  • Specifications
  • Download
  • Contact Sales
Diagonal Size 13.3"
Active Area 286.08 x 178.8mm
Pixel Number 1920 x R.G.B. x 1080
Pixel Pitch 0.1529 (H) x 0.1529 (V)
Pixel Arrangement RGB vertical stripe
Display Colors 262,144
Transmissive Mode Normally Black
Surface Treatment Hard-Coating (H),.Anti-Glare
Luminance, White 330 cd/m2
Color Gamut 72% NTSC
Response Time Typ:TR 14 / TF 11 ms
Contrast Ratio Typ:700/Min:500
Border size(L/R/U) 5.47/6.12/4.09 mm
View Angle(U/D/R/L) 85/85/85/85 Deg
Blacklight Unit LEDs 10 strings x 4 parallel
Electrical Interface eDP1.2
RoHs Compliance Yes
Power Consumption Total 4.15 W (Max.) @ cell 0.75 W (Max.), BL 3.4 W (Max.)
Male D-sub 9-pin with specified pin assignment for DC power input port
*1*12VDC output for AD board and LCD Panel
*1*5VDC USB output for fiber DVI extender receiver  (DC 5V, 2A)
VGA+DVI-D signal input ports
