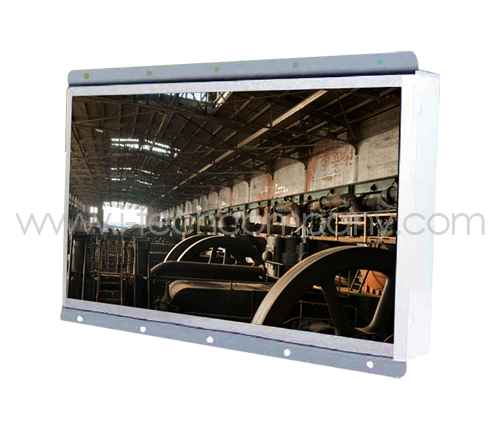

13.3" Widescreen (16:9) Open Frame LCD Monitor w/ VGA input (Model: WOPW1330M2)

Overview
Download

Technical Description
Model Name	WOPW1330M2

Screen Size (diagonal)	13.3"(16:10)

Active Display Area (mm)	286.08(H) x 178.8(V)

Pixel Pitch (mm)	0.2235mm x 0.2235mm

Native Display Resolution (pixels)	1280 x 800

Brightness (CD/m^2)	400(typ.)

Contrast Ratio (CR>=10)	500:1 (typ.)

Viewing Angles (L/R/U/D)	-70~70(H); 60~60(V)

Number of Colors	262,144(6bits/color)

Optional Touch Screen	No


Power Information
Power Source	AC 100~240 V,Universal,±10%

Power Consumption(Normal operation)	20W typical, normal operation

Power Input	VESA DPMS Compliant


Display Signals
Plug & Play	VESA DDC 1/2B

Video Input (optional)	S-Video,Composite

DVI Input (optional)	No

Remark:WOPW1330M2 = VGA input only/ VGA + DVI + Audio input
WOPW1330M2AV = VGA + Video + DVI + Audio input

*Due to Panel material's deviation, different panel supplier will set different specific variance range to optical characteristics. The factors of time used, Lamp current, Ambient temperature will influence the optical measurements.
