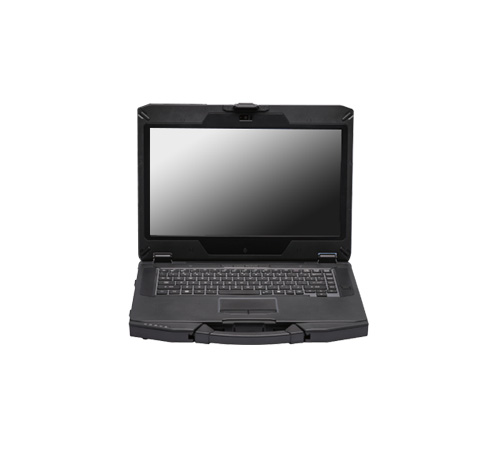

14" Rugged IP53 Laptop Intel i5, HDMI, VGA Inputs w/ 8GB RAM, 512GB PCIe SSD, 2MP Front Camera (Model: DLTW1400-i5)
Rugged Laptop 14" FHD (1920 x1080) Standard Display, Intel Core i5-1135G7 Processor 2.4 GHz up to 4.2 GHz, Windows 10 Professional with 8GB RAM, 512GB PCIe SSD, Wi-Fi 6 + Bluetooth v5.2, 2MP Front Camera, HDMI, VGA, RS232, Smart Card, SD Card Reader, TPM, Backlit Keyboard, with docking connector, IP53, 4ft Drop, 3-Year Standard Limited Warranty Coverage
Main Feature
- 14.0" FHD DynaVue SR display with 1000 nits
- 11 th Generation Intel Core Processor
- Wireless Wi-Fi 6 AX201 and Bluetooth V5.2
- Up to 20 hrs. with 2nd battery
- Dedicated GPS and 4G LTE WWAN
- Customizable multimedia bay
X
Inquiry/Quote Request
- Specifications
- Download
| DURABILITY | MIL-STD 81 OH certified (Drop, Shock, Vibration, Rain, Dust, Altitude, Freeze/Thaw, High/Low Temperature, Temperature Shock, Humidity) |
| 4' drop 26 faces | |
| IP 53 certified | |
| Aluminum-magnesium alloy chassis | |
| Port covers | |
| Removable quick-release battery and storage drive | |
| Optional sunlight readable display | |
| Optional swappable battery technology | |
| OPERATING SYSTEM | Windows 10 Pro 64-bit |
| PROCESSORS | Intel Core i7-1185C7 vPro (11 th Gen) 3.0GHz processor with Turbo Boost Technology up to4.8GHz, 12MB cache |
| Intel Core i7-1165G7 (11 th Gen) 2.8GHz processor with Turbo Boost Technology up to4.7GHz, 12MB cache | |
| Intel Core i5-1145G7 vPro (11 th Gen) 2.6GHz processor with Turbo Boost Technology up to 4.4GHz, 8MB cache | |
| Intel Core i5-1135G7 (11 th Gen) 2.4GHz processor with Turbo Boost Technology up to 4.2GHz, 8MB cache | |
| Intel Core i3-1115G4 (11 th Gen) 3.0GHz processor with Turbo Boost Technology up to4.1GHz, 6MB cache | |
| GRAPHICS | i7/i5 : Intel Iris Xe Graphics |
| i3: Intel UHD Graphics | |
| Optional NVIDIAGEFORCEGTX10501E | |
| MEMORYSTORAGE | 2 slots 8GB up to 64GB (2400-3200MHZ DDR4) |
| 256GB NVMEPCIESSD | |
| Optional 51 2GB/1TB PCIE SSD | |
| Optional OPAL 2.0 SSD | |
| Optional 2nd/3rd storage (SSD)2 | |
| DISPLAY | 14.0" FHD (1920x1080) |
| Optional 1000 nits DynaVue sunlight readable display without touch screen | |
| Optional 1000 nits DynaVue sunlight readable display with capacitive multi-touch screen | |
| User selectable touch mode for Finger/Water, Glove, orStylus programmable function | |
| AUDIO | Optional integrated microphone3 |
| Intel High Definition Audio Compliant | |
| Integrated speaker x 2 | |
| Keyboard volume and mute controls | |
| CAMERA | Optional integrated 2.0 MP web-cam with shutter design |
| Optional IR camera for Windows Hello2 | |
| KEYBOARD& INPUT | 2 user-definable keys (P1/P2) |
| RF signal slide-switch | |
| Standard membrane keyboard with optional LED | |
| backlight | |
| COMMUNICATIONS | Integrated 10/100/1000 Ethernet |
| Intel Wi-Fi 6 AX201 (802.11 a/b/g/n/ac/ax) | |
| Bluetooth V5.2 | |
| Optional dedicated GPS module (UBLOX-NEO-M8N) | |
| Optional 4G LTE multi-carrier mobile broadband | |
| Optional RF antenna pass-through for GPS, WWAN, andWLAN |
| SECURITY | Intel vPro Technology (per CPU options) |
| TPM2.0 | |
| NIST BIOS compliant | |
| Easy removable SSD | |
| Stealth mode | |
| Kensington lock | |
| Optional smart card reader4 | |
| Optional Windows Hello2 | |
| Optional night vision mode5 | |
| Optional fingerprint scanner | |
| Optional HF RFID/NFC reader2.4 | |
| I/O INTERFACES | USB 3.2 Gen 2 (type A) x 2 |
| USB 3.2 Gen 2 (type C) x 1 (support DP) | |
| USB 2.0 (type A) x1 | |
| Audio in/out (combo jack) x 1 | |
| SDcard(SDXC)x1 | |
| 10/100/1000 Ethernet (RJ45) x 1 | |
| VGA port (D-sub,15-pin) x 1 | |
| HDMIport(typeA)x1 | |
| Serial port (RS232/RS422/RS485 : D-sub, 9-pin) x 1 | |
| SIM card x1 | |
| DC-lnjackx 1 | |
| Optional smart card reader x 14 | |
| Optional docking connector (41-pin Pogo) x 1 | |
| Optional RF antenna pass-through for GPS, WWAN, andWLAN | |
| MEDIA BAY(One Option Only) | Optional DVD super multi |
| Optional 2nd battery | |
| Optional media bay storage (SSD)2 | |
| Optional ExpressCard 54 x 1 or PCMCIA Type II x 11<2 | |
| Optional 2nd RJ45 and 2nd serial port (RS232)1<2 | |
| POWER | AC adapter :100-240V, 50Hz-60Hz, 90W |
| Optional AC adapter (100-240V, 50Hz-60Hz, 120W), with NVIDIA® VGA | |
| Main battery Li-Ion, 10.8V, 4700mAh, 10 hours6 | |
| Optional 2nd battery Li-Ion 10.8V, 4700mAh, 10 hours6 | |
| Optional bridge battery: 5 minutes swap time7 | |
| ENVIRONMENT | Temperature |
| Operating : - 20°C ~ 60°C/- 4°F ~ 140°F | |
| Storage :-51 °C~ 71 °C/-60°F~160°F | |
| Humidity: 5%-95% | |
| DIMENSIONS AND WEIGHT | 13.78"(W)x11.1"(D)x1.5"(H)E |
| 5.07 lbs8 | |
| WARRANTY | 3-year Standard Limited Warranty |
| 1. Not available in comb® ination with Intel Core i3-1115G4. | |
| 2. Contactyoursales re|:resentative for feature availability. | |
| 3. Integrated microphone is available only with web-cam. | |
| 4. RFID/NFC and smart card reader are mutually exclusive. | |
| 5. Night vision mode is available only for sunlight readable display. | |
| 6. Tested using the MobileMark 2014 battery life benchmark. Results may vary under different situations including hardware configuration, software, operating conditions, power management settings and other factories. | |
| 7. The system will stay operating (within 300 seconds in standby mode) when user swaps the battery. | |
| 8. Weight varies with options. The dimension with optional discrete VGA is 2.4" (H). | |
