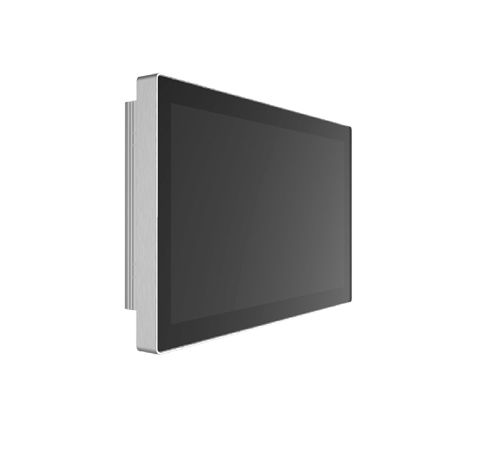

15.6" IP65 Military PCAP Panel PC w/ Intel Tigerlake-UP3 Core i3/i5, DC 12~24V (Model: LMilW1560)

15.6" (1920x1080) Defence PCAP Panel PC, Intel Tigerlake-UP3 Core i3/i5 Processors, IP65 Aluminum Front Bezel, AG, Removable 2.5" HDD/SSD Tray, DC 12~24V Wide Range Power Input, -40~70°C

15.6" (1920x1080) Defence PCAP Panel PC, Intel Tigerlake-UP3 Core i3/i5 Processors, IP65 Aluminum Front Bezel, AG, Removable 2.5" HDD/SSD Tray, DC 12~24V Wide Range Power Input, -40~70°C

Inquiry/Quote Request
15-6-inch-ip65-military-pcap-panel-pc-lmilw1560
  • Overview
  • Specifications
  • Download
Welcome to our selection of NVIS (Night Vision Imaging System) Panel PCs, expertly engineered for military and industrial applications. Our NVIS Panel PCs combine rugged construction with cutting-edge display technology to ensure optimal performance in the most demanding environments. Designed to meet the rigorous standards of military and industrial operations, these panel PCs offer unparalleled durability, advanced connectivity options, and exceptional display clarity. Whether you're operating in extreme conditions or need reliable computing power for critical tasks, our NVIS Panel PCs are the ideal solution.


Features:
  • Intel Tigerlake-UP3 Core i3/i5 Processors
  • 15.6" P-cap Flat Bezel
  • 1920x1080 FHD Resolution LCD
  • MIL-STD EMC, Shock & Vibration
  • Bezel-Free Design
  • Fanless Design
  • DC 12~24V Wide Range Power Input
  • IP65 / 66 Front Panel
  • Power Input by D38999 Connector
SYSTEM
Processor Intel TigerLake-UP3 Core i3/i5 Processors
System Memory 2 x DDR4 SO-DIMM, up to 64GB
External I/O Port 4 x USB 3.2 Gen2 Ports
2 x RJ45 LAN (Intel I225-LM supports 2.5GbE LAN)
1 x Display Port
1 x HDMI
4 x RS-232/422/485
1 x Audio out
1 x Power press button
1 x D38999 Connector for Power Input
Storage 1 x 2.5" Storage Bay
1 x M.2 M-key(NVME) 2280 Socket
Operating System Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2)
Windows 11 IoT Enterprise (64-bit, 21H2, Pre-test)
Linux Ubuntu 22.04 (64-bit, by request)
Linux Yocto Project 3.1 (64-bit, by request)
Expansion 1 x M.2 B-key 2242/3042 (SATA 3.0, PCIe x1, USB 2.0)
1 x M.2 E-key 2230 ( PCIe x1, USB 2.0)

LCD
Display Type 15.6" TFT LCD
Max. Resolution 1920x1080
Max. Color 16.7M
Luminance 350 nits
Contrast Ratio 800 : 1
View Angle 85/85/85/85

POWER REQUIREMENT
Power Input DC 12~24V Wide Range Power Input with 19Vdc MIL-STD-461G Adapter

ENVIRONTMENT
Mounting VESA Mount 75 x 75 / 100 x 100 by M4 Screw Hole, Panel Mount
Certification FCC / CE Class A Certification MIL-STD-461G CE101/CE102 Compliant
Operating Temp -40~70 °C ' IEC-60068-2-1/2/14
Storage Temp -40~70 °C
Humidity 10~90% @40 °C, non-condensing
Vibration & Shock MIL-STD-810H, Method 514.8, Procedure I, 5~500Hz (Compliance) MIL-STD-810H, Method 516.8, Procedure
I, 20g 11ms (Compliance)
Dimension 387.4 x 242.4 x 84 mm
