Features:

• 15.6" Bright Active Matrix TFT Display, 1000 Nits (cd/m˛)
• 1366 x 768 High Resolution
• NEMA 4X (IP66) 304 Stainless Steel Gasket Sealed Enclosure
• Input Interface VGA + DVI-D
• Included all water proof connectors and 6ft long water proof cables.
• LED backlight Energy Efficient, Low Power Consumption
• High Environmental Performance and Reliability
• Anti-Reflective Protective Glass
• Wide Operational Temperature Range, 0°C to +50°C (32°F to +122°F)
• RoHS Compliant
• VESA mount compliant.

Options:

• Optional custom fitting for integrated computer Atom D2550 1.86Hz, 32GB Wide temp SSD and 4GB Memory (DVI x 1 + RS232 x 1 + USB x 2 + POWER x 1 + LAN x 1
• Optional Custom fitting for purging the monitor's enclosure
• Optional for 9-36V DC input
• Optional 5 Wired Resistive touch/ IR/ PCap Touch Screen (USB Default/ RS232 per request controller)
• Optional High Brightness 1000nits For Semi outdoor application
• Optional for Auto Dimming Sensor
• Optional for IR Remote Control with Front Sensor.
• Optional Heater for lower temperatures -30C (-22F)
• Optional Integrated VGA/ DVI Extender
-Transmission length up to 1,000ft over CAT5e cable for VGA input
- Transmission length up to 300ft over CAT5e cable for DVI input

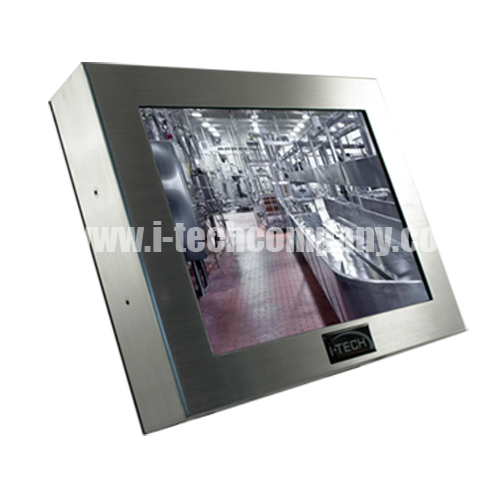

Rugged Completely Sealed IP66/NEMA4X Stainless Steel Chassis/Surface Mount LCD Monitor

Features Highlights:

1.Water Proof Solution, Full IP/NEMA4 Rating front and back, Stainless and Aluminum Housing Chassis Design 2. Glass Protective Glass at front. 3. Optional High Brightness and Touch screen.

IP65 Water and Dust proof connection for a higher protection All Connectors are facing back with IP66 water proof connectors

Specifications:





Panel	Cell Type / Glass Surface	TFT LCD / Black Anti-Glare, low refection coating
	Aspect Ratio / Size	Wide / 15.6" viewable diagonal area
	Active Area / Pixel Pitch	344.232(H) x193.536(V) mm / 0.2588(H) x 0.2588(V) mm
	Native Resolution / Colors	1366(H) x 768(V) / 16.7M
	Brightness / Contrast	1000 cd/m2 (typ) / 500 : 1
	Response Time	≤ 8 ms
	Viewing Angle (typical)	H.90o (- 45o ~ + 45o) , V. 50o(- 30o ~ + 20o)
	Light Source	LED backlight, Long life, 35,000 hrs (typ)
Input Sources	PC System	Signal	Analog RGB (0.7/1.0 Vp-p, 75 ohms)
		Sync	Separate Sync, Composite Sync, Sync On Green
		Frequency	Fh : 30 - 82Khz , Fv : 50 -75Hz
	Audio System	2W speaker x 2
Input Terminals	1 x VGA (15 Pin Female D-Sub) , 1 x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug
Convenient Features	Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B)
	OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
Power	Internal power supply with universal / Auto-Sensing, AC90 to 260V, 50/60 Hz
Power Consumption	Operation / Power Saving	11 watt , < 1 watt (Support DPMS)
Operating Condition	Temperature / Humidity	0oC ~ 50oC (32oF ~ 122oF) , 10% ~ 90% (no condensation)
Storage Condition	Temperature / Humidity	- 20oC ~ 60oC (- 4oF ~ 140oF) , 10% ~ 90% (no condensation)
Certification		FCC , CE
Dimensions	Physical	Please refer to Drawing
	Carton	W x H x D = TBD
Weight	N.W. / G.W.	4.5 Kgs / 5.5 Kgs
Container Loaded	20ft / 40ft / 40ft HQ	TBD (Sets , By pallet)

Options	Touch	Video / TV	Enhanced Panel	Others
	Resistive touch	SV + AV	Panel with LED backlight	Digital Signage(Stand alone)
	Capacitive touch	SV + AV + AV_Looping	High brightness panel	Networking Digital Signage
	SAW touch	SV + AV + TV	Wide Temperature	Motion Sensor
	Infrared touch		Sunlight Readable	Light Sensor
	Protected glass			Auto-Dimming

Accessories

Water proof VGA cables 6ft long x 1

Water proof DVI cables 6ft long x 1

External Power Adapter x 1
