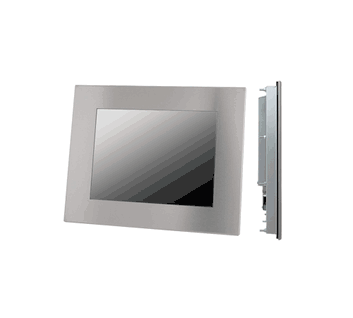

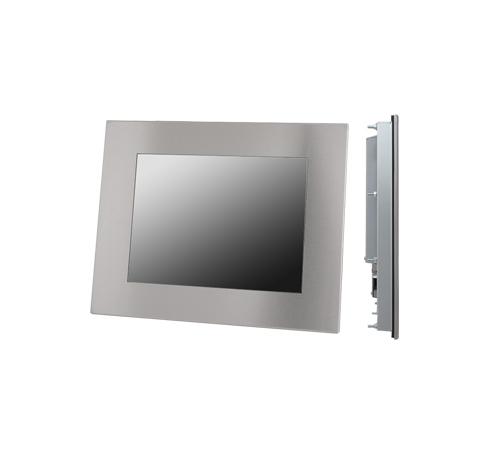

15" NEMA4 Stainless Steel Panel Mount LCD Monitor w/ HD-15, DVI-I, Class I, Division 2, Resistive Touch (Model: HPM1500-C1D2-DC-TR)

NEMA4 15" Stainless Steel Panel Mount LCD Monitor Bezel) Native Resolution XGA (1024x768, 4:3 Aspect Ratio) 400nits, Video Input HD-15, DVI-I, DC Power Models – 9.6 to 36.6 VDC, 2.5 to 0.65 A, Class 2 or SELV/LPS, +Resistive Touch Screen, Rated for HazLoc - AC Power Class I, Division 2 for Groups A, B, C, D; Class II, Division 2 for Groups F, G; Class III; Temp Code T4A

NEMA4 15" Stainless Steel Panel Mount LCD Monitor Bezel) Native Resolution XGA (1024x768, 4:3 Aspect Ratio) 400nits, Video Input HD-15, DVI-I, DC Power Models – 9.6 to 36.6 VDC, 2.5 to 0.65 A, Class 2 or SELV/LPS, +Resistive Touch Screen, Rated for HazLoc - AC Power Class I, Division 2 for Groups A, B, C, D; Class II, Division 2 for Groups F, G; Class III; Temp Code T4A

Inquiry/Quote Request
HPM1500-C1D2-DC-TR
  • Overview
  • Specifications
  • Download
Introducing the 15" NEMA 4 Stainless Steel Panel Mount LCD Monitor (HPM1500-C1D2-DC-TR), engineered for industrial excellence. This robust monitor features IP65/66 sealing, ensuring superior protection against dust and water. It’s UL rated for Class I, II, III, Division 2 hazardous locations, making it ideal for challenging environments. With a bright, high-contrast display and ultra-wide viewing angles, this monitor offers exceptional visibility. Its compact design, at just 1.82" to 2.12" deep, along with touch screen and various window options, provides versatile solutions for diverse industrial applications.


Features:
  • Compliant with NEMA 4/12 or NEMA 4/4X/12 standards, sealed to IP65/66 levels
  • UL Rated for Hazardous Locations: Class I, II, III, Division 2
  • Features bright, high-contrast displays with ultra-wide viewing angles
  • Proven MTBF (Mean Time Between Failures) of over 250,000 hours
  • Available with Touch Screen, Glass, Acrylic, and Food Protection window options
  • Depth ranges from only 1.82" to 2.12"
  • Constructed from stainless steel
  • Panel mount design eliminates the need for drilling stud holes
  • Holds various industrial certifications including UL 508A, UL 50E, FCC Class A, CE, and UL 60950 3rd Edition / cUL Recognized Component


Optional Accessories:
  • Industrial Keyboards (NEMA 4X rated)
  • Screen Protectors (all sizes)
  • Extended cable options up to 300m (1000')
  • KVM Extenders
Display
Type Thin-film transistor (TFT) Active Matrix Liquid Crystal, LED Backlit
Size 15" diagonal / 4:3
Image Size (W x H) 304 x 228 mm (12.0" x 9.0")
Native Resolution* XGA (1024 x 768 @ 60Hz)
Pixel Pitch 0.297 mm x 0.297 mm
Number of Colors 16.7 million
Brightness (white) 400 nits (cd/m2)
Viewing Angle (Hori/Vert) 170° / 170°
Contrast Ratio 1500:1
Backlight Brightness half-life 60,000 hours

Video
Input Connectors HD-15, DVI-I
Inputs using Adapter** HDMI, HDMI Mini, HDMI Micro, DisplayPort (DP), DisplayPort Mini, BNC
Input Signal Formats*** RGB Analog video, Separate H/V sync, Composite sync, Sync on Green; DVI
Horizontal / Vertical Scan 31-73 kHz/50-75 Hz
Response Rate 35 ms
Environmental
Temperature Operating: 0° to 50°C (32° to 122°F); Storage: -20° to 60°C (-4° to 140°F)
Humidity 20% to 90% non-condensing
Operating Shock / Vibration 15 g, 6 msec, half-sine / Operating (sine): 1.0 g, swept sine 9-500 Hz; Transport (random): 0.1g2 /Hz, 10-200Hz; 0.03g2 /Hz, 200-2000 Hz
Altitude Operating: up to 10,000 ft; Non-operating: up to 40,000 ft
Electrical
Monitor Input 9.6 to 36.6 VDC, 2.5 to 0.65 A
Power Consumption ~16.8 W
Physical
Enclosure Type Panel mount; rear collar compresses gasket against panel (5/16" maximum panel thickness); held by M5 studs
Bezel Material Stainless Steel Faceplate
Panel Rating (with proper installation) Black powder-coated carbon steel: NEMA/UL Type 12/4; built to IP65/IP66 standards Stainless steel: NEMA/UL Type 12/4/4X; built to IP65/IP66 standards
Depth behind Front Edge of Panel 49.6 mm (1.95")
Front Bezel Outside Dimensions (WxHxD) 437.8 mm x 353.6 mm x 7 mm (17.24" x 13.92" x 0.28")
Cutout Dimensions (WxH) 406.9 mm x 323.1 mm (16.02" x 12.72")
Net / Shipping Weight 14 lbs. /18 lbs.
Window Options Single-Touch Resistive Touch Screen
Tempered Glass window (non-touch)
Acrylic window (non-touch) (n/a 19.5, 23.8)
Glass-armored touch screen with sulfur gas protection also available (call for details)
Compliances and Certifications
Electrical UL/EN/IEC62368-1, UL/EN/IEC60950-1, UL Recognized Component for US and Canada, UL 508A, CAN ICES-3A/NMB-3A, CE, FCC Class A, NOM

Enclosure, Environmental

 UL 50E, IEC 60721-3 (Reliability), WEEE

Hazardous Location

 UL Listed for Class I, II, III, Division 2, Groups A, B, C, D, F, G; T-Code T4A
