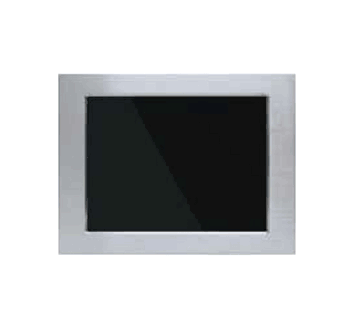

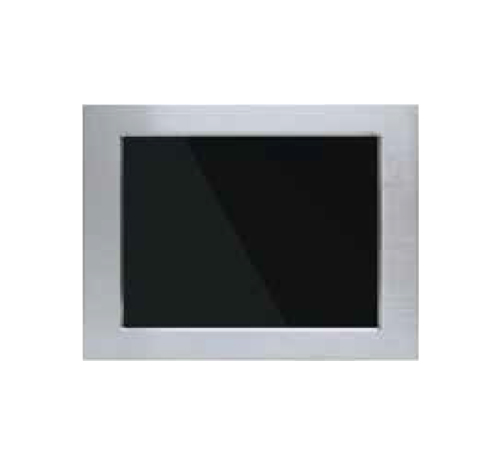

15" 1024x768 Fanless Panel PC 5 Wires Resistive Touch w/ Intel i5 4300U, VESA Mounting & Panel Mount (Model: KPC1500i5-V1)
15" Fanless Panel PC 5 Wires Resistive Touch Intel i5 4300U, 2xHDMI, 2xRS232, 4xUSB, 2xLAN, 1x24V DC in External Power Adapter, VESA mounting & panel mount, 1024x768 DPI
Main Feature
- Fanless and rugged design
- 4th Gen Intel i5 4300U CPU
- Resolution 1024 x 768 dpi / 1280 x 1024 dpi
- 5 Wires Resistive touch solution
- IP65 Silver Aluminum front bezel
- 4 x USB, 2 x RS232, 2 x GLAN, 2 x HDMI
- VESA mount & Panel mount & Clip mount
X
Inquiry/Quote Request
- Specifications
- Download
| SYSTEM | |
| CPU | 4th Gen Intel HSW ULT i5 4300U CPU (On Board) |
| Memory | 2 x 204-pin DDR3L SODIMM up to 16 GB |
| H/W MONITOR | |
| Watchdog Timer | Watch Dog Timer 256 Level |
| I/O PORTS | |
| RS232 | 2 |
| VGA | 2 |
| GLAN | 2 |
| USB | 4 |
| Line out | 1 |
| MICin | 1 |
| STORAGE | |
| Storage | 1xSATA2.0 2.5"HDD/SSD |
| EXPANSION | |
| Mini PCI-E | 1 x Full size |
| POWER REQUIREMENT | |
| Power Requirement | 3 Pin power terminal block for DC in 19 ~ 24V |
| TOUCH SCREEN | |
| Touch screen | 5 Wires Resistive (one touch) |
| OS SUPPORT | |
| OS support | Win Pro 7, 8.1 10 / Embedded Win 7,8.1, 10/Window 10 loT |
| DISPLAY | |
| Size | 15"TFT(4:3) |
| Resolution | 1024x768 |
| Colors | 16.2M |
| Luminance | 400 cd/m2 |
| Contrast Ratio | 700:1 |
| View Angle (HA/) | 1607160° |
| MECHANICAL & ENVIRONMENTAL | |
| Operation Temp. | 0 ~ 45°C |
| Storage Humidity | 10 ~ 90%, non-condensing |
| Mount | VESA mount (100X100mm) & Panel mount & Clip mount |
| Dimension (WxHxD) | 401 x 304 x 70 mm |
| Weight | 5.7 kg |
| OPTIONAL | |
| External antenna (WIFI ) | |
| Optical Bonding | |
| 2 x RS232 / 422 / 485 | |
| 10pcs x clips | |
| Waterproof sponge | |
| OPTIONAL HB PANEL SP150R017/020/022J |
|
| Resolution | 1024x768 |
| Color | 16.2M |
| Luminance | 1000cd/m2 |
| Contrast Ratio | 2000 : 1 |
| Viewing Angle (HA/) | 1767176° |
