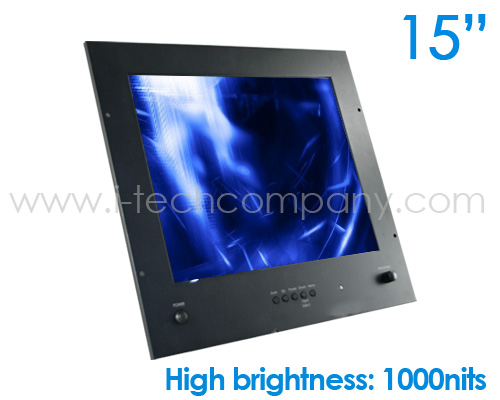

Panel Mount with Resistive TouchScreen and Full IP65/NEMA4 Water Proof 15" LCD 1024 x 768, high Brightness 1000nits Operating Temp. 0 C to 65C, video input RCA, S-Video, RGB, 8kg with Dimming control nob at front (Model: LMR-1500HBTR)

Panel Mount with Resistive TouchScreen and Full IP65/NEMA4 Water Proof 15" LCD 1024 x 768, high Brightness 1000nits Operating Temp. 0 C to 65C, video input RCA, S-Video, RGB, 8kg with Dimming control nob at front (Model: LMR-1500HBTR)
  • Front View
  • Back View
  • OSD
  • Power
  • Accessories
  • Water Proof Test
  • Sunlight Readable TEST
  • Sunlight Readable TEST
  • Sunlight Readable TEST
  • Sunlight Readable TEST

Panel Mount with Resistive TouchScreen and Full IP65/NEMA4 Water Proof 15" LCD 1024 x 768, high Brightness 1000nits Operating Temp. 0 C to 65C, video input RCA, S-Video, RGB, 8kg with Dimming control nob at front (Model: LMR-1500HBTR)

Inquiry/Quote Request
LMR-1500HBTR
  • Overview
  • Download




Features:

IP65 Front and Rear Waterproof
15" LCD Screens
2 Video RCA Inputs
1 Audio RCA Output
Low Power Consumption
5 Wire Resistive Touch Screen


FRONT Features

  1. HB Options: High Brightness & High Contrast LCD: Offers superior readability under sunlight. High Brightness (All Above 1000 nits) and contrast ratio assure excellent visibility even in bright outdoor environments.
  2. Left and Right Front Panel Mounting holes
  3. Front Power On/off Switch:
  4. IP65/NEMA4X front and back Bezel: It will stand up to harsh, wet and dirty environments, Falling dirt, rain, sleet, snow, windblown dust, external ice formation, splashing water, hose-directed water.
  5. Front Protection Glass
  6. Front Dimming Knob: Changing brightness control.
  7. Front Water proof OSD: Auto, Up, Power, down/Input Select/ Menu

BACK Features

  1. IP65/NEMA4X front and back Bezel: It will stand up to harsh, wet and dirty environments, Falling dirt, rain, sleet, snow, windblown dust, external ice formation, splashing water, hose-directed water.
  2. VESA Mounting
  3. Panel Mount Gas Gasket for waterproof

Specifications:

DISPLAY SCREEN
    SIZE 15.1 " TFT (Diagonal)
    Active Area 304.128(W) x 228.096 mm(H)
    ELEMENT COLOR TFT LCD
    RESOLUTION 1024 x 768 maximum
    LCD Display Color 16.2M colors
    DOT PITCH 0.297 x 0.297 mm
POWER SOURCE AC/DC Adapter 12 V
POWER CONSUMPTION 12V, 1.76A , 21.12w
OPERATING TEMPERATURE 0℃ ~ 60℃
STORAGE TEMPERATURE -20℃ ~ 65℃
BRIGHTNESS 1000 cd/m˛
RESPONSE TIME 8 ms (Tr+Tf)
CONTRAST 700 : 1
VIEWING ANGLE Vertical Up 70°Down 70°, Horizontal : ± 80°
INPUT SIGNAL Audio / Video Composite: NTSC/PAL/SECAM
1 Vp-p. 75Ω RCA x 1
S-Video socket x 1
PC RGB Analogue Input 15 Pin D-Sub x1
PLUG & PLAY VESA DDC2B
GREEN FUNCTION VESA DPMS
OSD CONTROL FUNCTION Brightness, Contrast, Color, Volume, Mute
OVER ALL DIMENSION 412.0 x 345.0 x 50.0 (mm)
REGULATIONS Safety: CE, FCC meet
WEIGHT 8Kgs

VGA SUPPORT TABLE
Resolution Horiz. Freq.(KHz) Vert. Freq.(Hz) Polarity
640X350 31.46 70 +/-
37.86 85 +/-
720X350 31.46 70 +/-
37.86 85 +/-
640X400 31.46 70 -/+
37.93 85 -/+
24.82 56 -/+
720X400 31.46 70 -/+
37.86 85 -/+
640X480 31.46 59.9 -/-
35.00 66.6 +/-
37.86 72.8 -/-
37.50 75.0 -/-
43.27 85.0 -/-
800X600 35.15 56.2 +/+
37.87 60.3 +/+
48.07 72.2 +/+
46.87 75.0 +/+
44.40 70.0 +/+
53.67 85.0 +/+
832X624 49.72 74.5 -/-
1024X768 48.36 60.0 -/-
56.47 70.1 -/-
58.08 72.9
60.02 75.0 +/+
68.68 84.9 +/+
1152X864 54.90 60.0
64.19 70.2 +/+
67.50 75.0 -/-
76.30 80.0
77.09 84.9
