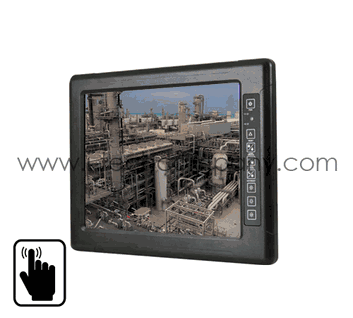

15" High Quality Panel, 1024*768 resolution, 400 nits (optional for 1000 nits) Front IP65 Dust/ Water proof design with VESA mount with Intel Core i5-4200U Haswell 1.6GHz (Turbo max 2.6GHz) w/ Resistive Touch (Model: WRDC1500-i5)

15" High Quality Panel, 1024*768 resolution, 400 nits (optional for 1000 nits) Front IP65 Dust/ Water proof design with VESA mount with Intel Core i5-4200U Haswell 1.6GHz (Turbo max 2.6GHz) w/ Resistive Touch (Model: WRDC1500-i5)

15" High Quality Panel, 1024*768 resolution, 400 nits (optional for 1000 nits) Front IP65 Dust/ Water proof design with VESA mount with Intel Core i5-4200U Haswell 1.6GHz (Turbo max 2.6GHz) w/ Resistive Touch (Model: WRDC1500-i5)

Inquiry/Quote Request
WRDC1500-i5-TR
  • Overview
  • Download

Features:
  • Intel Core i5-4200U Haswell 1.6GHz (Turbo max 2.6GHz)
  • High Quality 15" Panel, 1024*768 resolution, 400 nits (optional for 1000 nits)
  • Front IP65 Dust/ Water proof design with VESA mount
  • Aluminum Housing with Anti-Corrosion Treatments
  • Built-in ambient Light sensor
  • Wide Range 9 to 36V DC Input
  • Optional 6-60V DC Input, and Optional for Ignition On/Off delay
  • 5 Wire Resistive Touch / Anti-Reflective Protection Glass (Optional)
  • Optional GPS, 3G/WLAN(Either one). Digital IO/Canbus(Either one)
  • Compliance with EN50155


Specifications:

Display Characteristics
Panel_Size 15"
Panel_Display Resolution 1024x768
Pixel Pitch(mm) 0.297 x 0.297
Panel_Contrast Ratio 700:1
Panel_Brightness 400 nits (optional for 1000 nits)
Panel_Viewing Angle -80~80(H);-70~70(V)
Active Display Area 304.128(H) x 228.096(V)
Display Color 16.2M,8-bits
Touch(Optional) 5 Wire Resistive(Default)
 System Specification
Processor Intel Core i5-4200U Haswell 1.6GHz (Turbo max 2.6GHz)
BIOS AMI 16Mbit Flash
Memory 1x DDR3L 1600 MHz SO-DIMM default 2 GB, Max. 8GB
Wireless (Optional) 1x Mini PCI-E base Wireless LAN card with SMA antenna
Storage mSATA SSD, default 64GB
Security Support Trusted Platform Module (TPM 1.2)
 I/O Connectors
Back Panel I/O Port 2 x USB 3.0, 1 x HDMI
1 x RS-232
1 x RS-232 (Optional)
1 x RS-232/422/485
1 x 9~36V Terminal Block
1 x CanBus / Digital IO (Optional)
1 x SIM Card Slot (Optional)
2 x LAN
 Mechanical and Environment
Dimensions (W x L x H) 398 mm x 308 mm x 58mm
Net Weight (kg) (with touch) 4.9 kg*
Power Input 9~36V DC in (Phoenix type)
Optional 6-60V DC in, with Ignition On/Off delay
Panel_Operating Temp -25 deg.C to 55 deg.C
Operation Humidity 10% to 95% (non condensing)
Certifications CE, FCC ClassB
MIL-STD-810F
Shock MIL810F/EN50155
Vibration MIL810F/EN50155
 Product Option Items
Mounting Bracket and Kits One robust bracket with locking handle (Can adjust from -5deg. to 90deg.)
Sunlight Readable Transflective film enhancement (optional)
OS Windows 7 embedded / Windows 8 embedded
Touch / Anti-reflective Glass 3mm Anti-reflective Protection Glass (w/o Touch)
WLAN Mini PCI-E base Wireless LAN card with SMA antenna
