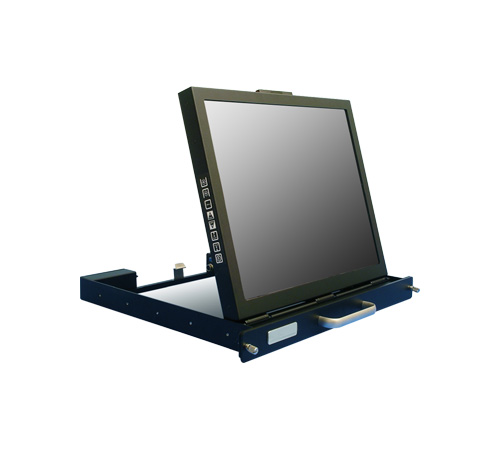

15" Industrial-/Military-Grade 1U Rack Mount 1024 x 768, High Brightness: 600 Nits, 600:1, Viewing: 11.97" x 8.98", Response time 3/5 ms, Shock: 30 G, 11 ms ½ Sine Wave, Vibration: 1.0 G (50-100 Hz) (Model: Gmil-NP115HB)

Main Feature

- 15.0"/17.0"/17.3"/19.0"19.0" Active Matrix TFT LCD Displays
- XGA (1024 x 768 pixels) to WUXGA (1920 x 1080 pixels) Resolution
- Wide Viewing Angle (Horizontal & Vertical)
- High Brightness & Contrast Enhances Display Quality
- Designed to Satisfy MIL-STD-461E, UL and FCC Standards
- Fast Response Time Ideal for Real-Time and Video Applications

Overview
Specifications
Download
Contact Sales

ENCLOSURE

Rugged, All-Metal Construction Designed to Satisfy Industrial or MIL-STD-810E and -810F and TEMPEST Level 2 Requirements
Continuous-Friction Hinges Permit Display to be Adjusted > 90°
Ultra-Low Profile, 1U (1.75" High) Rack Mount Enclosure
Easily Mounts in Rack Chassis via 20" Slides (Provided)
Spring Coil Latch Secures Display in Stowed Position

DISPLAY

15.0"/17.0"/17.3"/19.0"19.0" Active Matrix TFT LCD Displays
XGA (1024 x 768 pixels) to WUXGA (1920 x 1080 pixels) Resolution
Wide Viewing Angle (Horizontal & Vertical)
High Brightness & Contrast Enhances Display Quality
Designed to Satisfy MIL-STD-461E, UL and FCC Standards
Fast Response Time Ideal for Real-Time and Video Applications

VIDEO CONTROLLERS

Support for Interlaced and Non-Interlaced Video Sources
Support for Separate, Composite Sync-On-Green, and DVI-D Standards
Support for NTSC, SECAM, PAL, RS-170 Video with Input Format of Composite Video, S-Video and Component Video (YCrCb) [Opt.]
Resolutions to 1920 x 1200 @ 60 Hz; Sub-resolutions to 75 Hz
Intuitive On-screen Menus for Display Calibration and Users Control
Advanced Imaging Features - Auto Adjust, Brightness/Contrast/Color Adjustments, Image Expansion, Image Zoom, Foreign Languages, PIP, PBP, more

POWER

+12 VDC Operation
Low Power Consumption (<40 Watts)

OPTIONS

NVIS-Compatible Displays Compliant with MIL-STD-3009
Sunlight Readable Displays and Other Optical Enhancements
Separate 1U Power Supply Mounts to Rear of Rack in Same Vertical Rack Space
Support for DVI-D Video, HDMI Video, NTSC Video (Composite)
Audio Add-on Board Provides Volume Control of Stereo Speakers
Protective Glass Display Overlay
Capacitive and Resistive Touch Screens
Cable Management Systems
Serial Calibration, Gamma Control or Remote On/Off
Integrated 4-Port USB Hub

DISPLAY
Size (Diagonal)	Viewing Area (W x H)	Resolution (Pixels)	Number of Colors	Luminance (0° Max.)	Contrast (Max.)	Response Time (Rise/Decay)	Horizontal Viewing Angle	Vertical Viewing Angle	Shock	Vibration
15.0"	11.97" x 8.98"	1024 x 768	16.7 Million	600 Nits	600:1	3/5 ms	±80°	±80°	30 G, 11 ms ½ Sine Wave	1.0 G (5-100 Hz)

MTBF
Display	LED Backlight	LED Controller	Power Supply (Optional)
50,000 Hours (Minimum)	70,000 Hours (Minimum)	182,000 Hours (Minimum)	Depends on Supply Selected

ENVIRONTMENTAL
Temperature, Operating	Temperature, Storage	Humidity, Operating	Humidity, Storage	Altitude, Operating	Altitude, Storage
-20° C to 70° C	-30° C to 80° C	8% to 90% RH Non-condensing	8% to 90% RH Non-condensing	10,000 Feet	30,000 Feet

MECHANICAL
Dimensions (H x W x D)	Construction	Finish	Weight, Operating	Weight, Shipping
1.75" (1U) x 19.00" x 16.00"	5052-H32 Aluminum/Steel	Black Matte Powder Coat & Clear Iridite	18 Pounds	28 Pounds

VIDEO CONTROLLER
Display Supported	640 x 480 VGA	800 x 600 SVGA	1024 x 768 XGA	1280 x 1024 SXGA	1600 x 1200 UXGA	1920 x 1200 WUXGA	Scaling	NTSC / SECAM / PAL / RS-170	Video Supported
All	60, 72, 75 Hz	56, 60, 72, 75 Hz	60, 70, 75 Hz	60, 75 Hz	60 Hz	60 Hz	On/Off	-	Separate, Composite, Sync-On-Green, DVI-D
All	60, 72, 75 Hz	56, 60, 72, 75 Hz	60, 70, 75 Hz	60, 75 Hz	-	60 Hz	On/Off	-	Separate, Composite, Sync-On-Green, DVI-D
All	60, 72, 75 Hz	56, 60, 72, 75 Hz	60, 70, 75 Hz	60, 75 Hz	-	60 Hz	On/Off	Digital Processor, Picture-In-Picture	Separate, Composite, Sync-On-Green, DVI-D

Most common video inputs listed. See below for a comprehensive list of supported video standards. Speak with a Sales Engineer for more information.
Most common video modes listed. Other video modes supported. Speak with a Sales Engineer for more information.
Supports advanced features such as Live Video, Picture-In-Picture (multiple user-selectable sizes), and Picture-By-Picture.
Video controller 115 is obsolete and shown for reference only.
