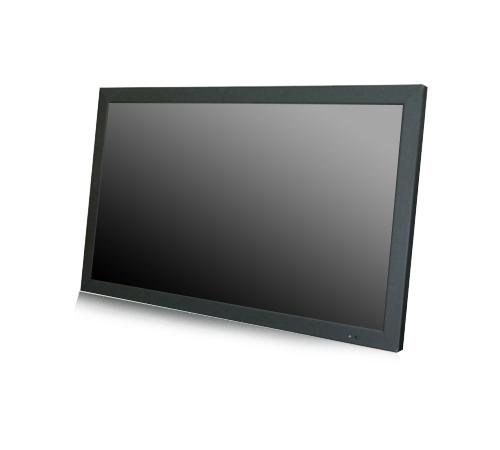

15.6" IP monitor, DVI/HDMI/VGA/CAT 5 Input, 8Channel Res 1920*1080, 300nits and Black metal case (Model: HIP1560)
15.6" IP monitor, DVI/HDMI/VGA/CAT 5 Input, 8Channel Res 1920*1080, 300nits and Black metal case (Model: HIP1560)
Main Feature
- 15.6" LCD monitor Optional ultra high brightness
- Directly connects IP camera without the use of any computer or software
- 8 Channel
- 1920 x 1080 resolution
- 300 nits
- Supports DVI, HDMI, VGA, CAT5, and USB inputs
- Supports various IP camera models from leading camera manufacturers
- Customizable display settings including resolution, saturation, brightness, and contrast levels
- Black metal casing
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
- Contact Sales
These LCD monitors can be connected to an IP camera directly without the use of any computer or software. Simply connect the IP camera to the Hub and run the network RJ45 back into the screen. It then allows you to view multiple live videos from the IP camera within one screen. This is ideal for video monitoring applications wherein a certain location needs security, either it is a home or office.
Features
- 15.6" LCD monitor Optional ultra high brightness
- Directly connects IP camera without the use of any computer or software
- 8 Channel
- 1920 x 1080 resolution
- 300 nits
- Supports DVI, HDMI, VGA, CAT5, and USB inputs
- Supports various IP camera models from leading camera manufacturers
- Customizable display settings including resolution, saturation, brightness, and contrast levels
- Black metal casing
| LCD Panel | 15.6" |
| Viewable area (H/V-mm) | 344.16 x 193.59 |
| Profile ratio | 16:9 |
| Max. Resolution | 1920 x 1080 |
| Display Colors | 262K |
| Brightness | 300 cd/m2 |
| Contrast | 600:1 |
| Response time (Tr/Tf) | 3/8 ms |
| View Angle (U/D/L/R) | 60/60/70/70 |
| Dimension (WxHxD)mm | 401.5 x 251 x 60.3 |
| Weight (kgs) | 3.4kgs |
| Operation temperature | 0° to 40°C |
