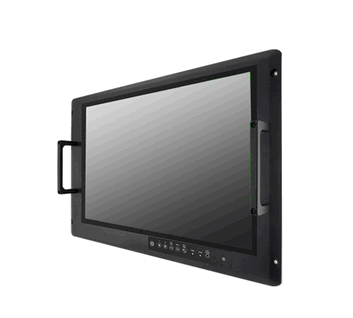

15" 500nits Military Grade Console Display Compliant w/ MIL-STD-810G/F & P-Cap Touch (Model: WMRM1500-PCAP)
15" 1024 x 768, 500 nits Military Grade Rugged Console Display Compliant with military standard MIL-STD-810G/F with P-Cap Touch
Main Feature
- 15", 1024 x 768 resolution
- Compliant MILSTD 810G/ MILSTD 461E
- Rack mount mechanical design, supports VESA mount
- PCAP multi touch screen
- Military grade power connector (MILDTL38999/1)
- AC 100~240V, Universal, ñ10%? DC 9~36V, ñ10% (Optional)
- Convenient on-screen display controls
X
Inquiry/Quote Request
- Specifications
- Download
| DISPLAY | |||
| Resolution | 1024x768 | Size | 15.0 inches |
| Contrast Ratio | 2500:1 | Panel Brightness | 500 nits |
| Display Color | 16.7M Colors | View Angles | 88,88,88,88 |
| Touch / Glass | Projected Capacitive Multi Touch Screen PCAP with With ITO Flim (Optional) |
||
| ENVIRONMENT | |||
| Operating Humidity | 10% to 95% RH | Operating Temperature | -20øC ~ 60øC |
| Storage Temperature | -30øC ~ 70øC | ||
| CERTIFICATION | |||
| Certification | CE, FCC | ||
| MIL-STD 461E/F | RE101 / RE102 CE101 / CE 101 with EMI Glass / Touch(Optional) RS101 / RS 103 CS101 / CS 106 / CS 109 / CS 114 / CS 115 / CS 116 |
MIL-STD 810F/G | Vibration Method 514.5 Humidity Method 507.4 Transit Drop Method516.5 |
| IO PORTS | |||
| USB Port | 1 x USB for Touch | Video | 1 x VGA 5 x BNC (R,G,B,H,V) 1 x DVID |
| MECHANICAL | |||
| Dimension | 402 x 321 x 70 mm | Mounting | VESA Mount/ Rack Mount |
| Enclosure | Metal Housing with Aluminum Bezel | Coolingÿ System | Fanless Design |
| Accessory | 1 x User Manual(Hardcopy) 1 x Power Cord MILDTL38999/ 1 x VGA Cable 1 x DVI Cable 1 x VGA to 5 BNC Shielding Cable |
||
| POWER | |||
| Power Rating | AC 100~240V, Universal, ñ10% DC 9~36V, ñ10% (Optional) |
||
| CONTROL | |||
| Button | 7 key: Power, Decrease, Increase, Exit/ Auto, Menu, Day/ Night, Lock/ Unlock | ||
