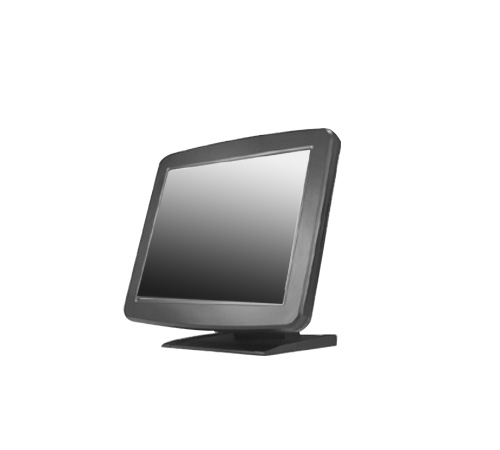

15" Plastic Panel PC 1000nits, Built-In Auto Light Sensor w/ 5-Wire Resistive Touch (Model: EPC1500-J-TR-ST)

Plastic Panel PC 15" 1024x768, 1000nits, Built-In Auto Light Sensor and 5-wire resistive touch, Baytrail+Celeron-J1900-CPU, 8GB DRAM, 256GB SSD, Window 10 Pro, Built-in Stand Table Stand

Plastic Panel PC 15" 1024x768, 1000nits, Built-In Auto Light Sensor and 5-wire resistive touch, Baytrail+Celeron-J1900-CPU, 8GB DRAM, 256GB SSD, Window 10 Pro, Built-in Stand Table Stand

Inquiry/Quote Request
EPC1500-J-TR-ST
  • Overview
  • Specifications
  • Download
Panel PCs are used in a variety of applications, such as in industrial automation, building automation, and medical equipment. They are designed to operate in harsh environments and can withstand shock, vibration, and temperature extremes. Plastic case panel PC is a reliable and efficient computing solution that offers a compact design, durable construction, and flexible mounting options.


Features:
  • 15" Plastic1024x768, 1000nits
  • Built-In Auto Light Sensor
  • 5-wire resistive touch
  • Baytrail+Celeron-J1900-CPU,
  • 8GB DRAM,64GB SSD
  • Built-in Stand Table Stand
  • 256GB SSD Window 10 Pro.
Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low reflection coating
Aspect Ratio / Size 4:3 / 15" viewable diagonal area
Active Area / Pixel Pitch 304.13(H) x 228.10(V) mm / 0.297(H) x 0.297(V) mm
Native Resolution / Colors 1024(H) x768(V) / 16.2 Million
Brightness / Contrast 1000 cd/m2 (typ) / 700 : 1
Response Time ≤ 35 ms
Viewing Angle (typical) H. 140° (- 70° ~ + 70°) , V. 120° (- 60° ~ + 60°)
Light Source CCFL , Long life, 50,000 hrs (typ)
Operating Condition Temperature / Humidity 0°C ~ 50°C (32°F ~ 122°F), 10% ~ 90% (no condensation)
Storage Condition Temperature / Humidity - 20°C ~ 60°C (- 4°F ~ 140°F), 10% ~ 90% (no condensation)
Certification   FCC,CE
Dimensions Physical Please refer to Drawing
Carton W x H x D = TBD
Weight N.W. / G.W. 4 Kgs / 5 Kgs
Container Loaded 20ft / 40ft / 40ft HQ TBD (Sets , By pallet)



PC Specifications
System processor/Chipsets Processor Intel Celeron J1900
FSB N/A
Chipset Intel Atom BayTrail
BIOS UEFI
Memory Technology Single Channel DDR3L 1333 MHz SDRAM
Capacity 8GB DRAM
Socket 1 x SO-DIMM
Display Chipset Intel Gen7 Intel Graphics DX 11*, OGL3.2
Video Memory Shared Memory
LVDS Dual channel 24-bit, max resolution 1920 x 1200@60Hz
VGA Supports max. resolution 1920 x 1200
Multi Display Yes

Ethernet Ethernet 10/100/1000 Mbps
Controller IGbE LAN: Realtek RTL8111G-CG
SATA Storage 256GB SSD
Expansion Slot Mini PCIe 1 (Full Size)
Onboard Pin-Header VGA 0
USB2.0 6 ( 3*2.54 pitch header USB 2.0 compliant)
LV D S 1
Serial 4 (RS-232)
Rear I/O VGA 1
HDMI 1
COM 0
USB 2 x USB 3.0
LAN 2
Audio 1 (Line out)
Power Power 9-36V DC-In using 4-pin ATX PWR Con
Watchdog Timer Interval 256 segments, 0,1,2..255sec/min
Output Output from super I/O to drag RESETCON#
Environment Operating Temp. -5°C~60°C (23°F~140°F)
Storage Temp. -20°C~80°C (-68°F~176°F)
Relative Humidity 0%~95% (non-condensing)
Form Factor Dimension (LxW) 146mm x 102mm (5.8" x 4.0")
