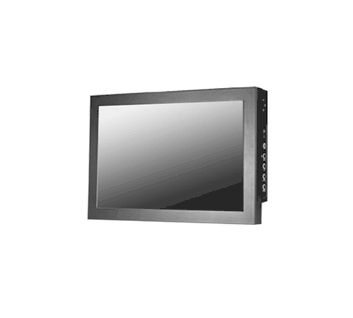

15.6" Vehicle Chassis LCD Monitor w/Built-in RT Touch & Compliance EN50155 (Model: ECHW1560-EN50155-TR-V2)

15.6" LCD Monitor, 1920x1080, LED-1000nits, WV(178°/178°) WT(-30~40C), AC-IN w/Built-in RT touch and PWR, I/O: VGA+DVI+RS232(touch), Power: 9~36V DC isolated, Compliance EN50155 (Anti-Vibration and Anti-Shock)

Modularize mechanical design provides flexible product configuration and easy maintenance
AC-IN w/Built-in RT touch and PWR
Available with auto-brightness sensor offers application in day and night
VGA connector with optional AV.SV.AV-Looping
Complete custom design/solution for OEM customers
Compliance EN50155 (Anti-Vibration and Anti-Shock)
Auto Power On: Monitor is always "ON" when connect to power.
Auto Video Signal On: Monitor (Backlight) will turn off when no video signal, but it will Auto turn back on.

Panel	Cell Type / Glass Surface	TFT LCD / Black Anti-Glare, low reflection coating
	Aspect Ratio / Size	Wide / 15.6" viewable diagonal area
	Active Area / Pixel Pitch	344.16(H) x193.59(V) mm / 0.1793(H) x 0.1793(V) mm
	Native Resolution / Colors	1920(H) x 1080(V) / 16.7M
	Brightness / Contrast	1000 cd/m2 (typ) / 500 : 1
	Response Time	< 35 ms
	Viewing Angle (typical)	H.178° (- 89° ~ + 89°) , V. 178° (- 89° ~ + 89°)
	Light Source	LED backlight, Long life, 35,000 hrs (typ)
Input Sources	PC System	Signal	Analog RGB (0.7/1.0 Vp-p, 75 ohms)
		Sync	Separate Sync, Composite Sync, Sync On Green
		Frequency	Fh : 30 - 82Khz , Fv : 50 -75Hz
	Audio System	Optional
Input Terminals	1 x VGA (15 Pin Female D-Sub) , 1 x DVI, 1 x RS232(touch)
Convenient Features	Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B)
	OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
Power	9~36VDC PWR
Power Consumption	Operation / Power Saving	18 watt , < 1 watt (Support DPMS)
Operating Condition	Temperature / Humidity	- 30°C ~ 40°C (-22°F ~ 104°F) , 10% ~ 90% (no condensation)
Storage Condition	Temperature / Humidity	- 40°C ~ 60°C (-22°F ~ 140°F) , 10% ~ 90% (no condensation)
Certification		FCC , CE
Dimensions	Physical	Please refer to Drawing
	Carton	W x H x D = TBD
Weight	N.W. / G.W.	4.5 Kgs / 5.5 Kgs
Container Loaded	20ft / 40ft / 40ft HQ	TBD (Sets , By pallet)
