15.6" Wide LED Backlit Anti-Glare Mobile Ruggedized Display Solutions (Model: DCHW1560SDI)

15.6" Wide LED Backlit Anti-Glare Mobile Ruggedized Display Solutions (Model: DCHW1560SDI)

15.6" Wide LED Backlit Anti-Glare Mobile Ruggedized Display Solutions (Model: DCHW1560SDI)

Main Feature

    • LED Backlit LCD's
    • Interchangeable acrylic lenses
    • Carrying handle
    • Input Options
    • Optional Kickstand
    • Rugged Aluminum Frame
    • Optional Battery Cradle With IDX V-Mount Anton Bauer Gold Mount
DCHW1560SDI
  • Overview
  • Specifications
  • Download
  • Contact Sales

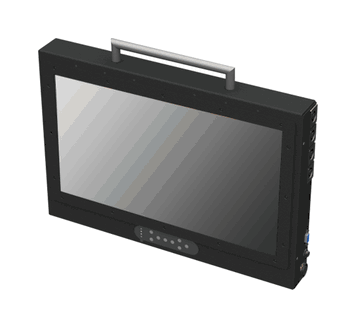

Our DCHW-Broadcast Premier offers an ideal solution for mid-level broadcast professionals. It features a lightweight design yet, equipped with a rugged portable display that utilizes LED backlit LCDs for superior image quality. For more durability, it has a rugged all aluminum construction. It also comes standard with an interchangeable acrylic lens. While it makes use of our V17xSDI controller card with a maximum resolution of 1920 x 1200, it can be upgraded to V23xSDI Broadcast Premier Plus controller card with input options of VGA, HDMI, HD/SD-SDI and audio. The DCHW-Broadcast Premier is field powered by an Anton Bauer battery (Gold Mount) or XLR power input. Other optional features that you can avail include the optical bonded lens, high bright panels, and wireless transmit/receive.



Features:

  • LED Backlit LCD's
  • Interchangeable acrylic lenses
  • Carrying handle
  • Input Options
  • Optional Kickstand
  • Rugged Aluminum Frame
  • Optional Battery Cradle With IDX V-Mount Anton Bauer Gold Mount


WHY CHOOSE THE DCHW Series

  • Rugged All Aluminum Construction
  • Field Replaceable Acrylic Lens
  • 3G SDI Input/output
  • ¼" Headphone/Phone jack
  • Speakers (only available on 15.3” and larger models)
15.6" Wide LED Backlit LCD w/ Anti-Glare
Resolution: WXGA 1920 x 1080 (Max Res)
Viewing Angles: 80L/80R/80U/65D
Contrast Ratio: 800:1
Brightness: 600 NITS
Response Time: 30ms
Surface Finish: Anti Glare with arcylic Lens
Color: 8 bit
Type: TN
