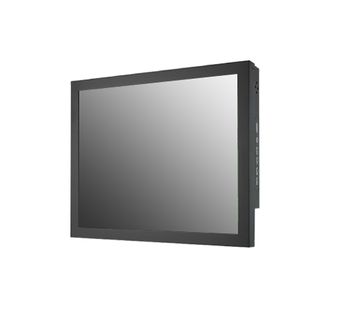

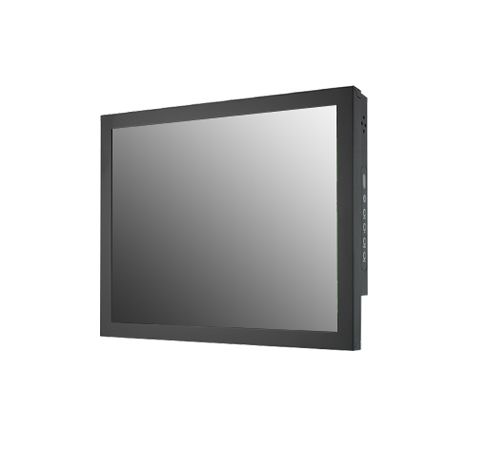

17" Military Grade, IP65 Front Chassis w/ VGA, DVI, MIL-STD-810 / MIL-STD-461F, 9~36V DC (Model: EMCH1700DC)

Military Grade, IP65 Front Chassis, 17" LCD Monitor, 1280x1024 LED-250nits, VGA, DVI Inputs, Compliance: MIL-STD-810 / MIL-STD-461F, 9~36V DC isolated.

Military Grade, IP65 Front Chassis, 17" LCD Monitor, 1280x1024 LED-250nits, VGA, DVI Inputs, Compliance: MIL-STD-810 / MIL-STD-461F, 9~36V DC isolated.

Inquiry/Quote Request
EMCH1700DC
  • Overview
  • Specifications
  • Download
The 17-inch Military-Grade IP65 Front Chassis Monitor (EMCH1700DC) is specifically engineered to meet the rigorous demands of military applications. With an IP65-rated front panel, this rugged display provides exceptional durability and protection against dust, water, and other harsh environmental factors. Its high-performance display ensures crystal-clear visuals, making it ideal for mission-critical operations. Designed to withstand extreme conditions, the EMCH1700DC is a reliable choice for military and industrial sectors that require long-lasting, robust display solutions.


Features
  • The modular mechanical design allows for flexible product configuration and simplifies maintenance.
  • Optional built-in touchscreen for interactive applications.
  • Equipped with an auto-brightness sensor for optimal use in both day and night environments.
  • VGA connector with optional AV, SV, and AV looping capabilities
  • Fully customizable design/solution tailored for OEM customers
  • Optional features: MIL connector, M12 connector, or plastic IP69 water-resistant connector


Option MIL:
  • Environmental: MIL-STD-810, DO-160
  • EMI/EMC: MIL-STD-461/462
  • Panel construction & lighting: MIL-P-7788
  • Power: MIL-STD-704, MIL-STD-1275
  • Shock – MIL S 901D
  • Vibration – MIL STD 167
Cell Type TFT LCD
Glass Surface Black Anti-Glare, low reflection coating
Aspect Ratio 4:3
Size 17" viewable diagonal area
Active Area 337.92(H) x 270.34(V) mm
Pixel Pitch 0.264(H) x 0.264(V) mm
Native Resolution 1280(H) x 1024(V)
Colors 16.7 M
Brightness 250
Contrast 800 : 1
Response Time ≤ 5 ms
Viewing Angle (typical) H. 170°(- 85°~ + 85°) , V. 160°(- 80°~ + 80°)
Light Source LED backlight, Long life, 35,000 hrs (typ)

CERTIFICATION
FCC , CE
INPUT TERMINALS
1 x VGA (15 Pin Female D-Sub) , 1 x DVI, 1 x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug
CONVENIENT FEATURES
Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B) , OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
POWER
9~36V DC isolated
POWER CONSUMPTION
Operation / Power Saving 32.5 watt , < 2 watt (Support DPMS)
OPERATING CONDITION
Temperature / Humidity 0°C ~ 50°C (32°F ~ 122°F) , 10% ~ 90% (no condensation)
STORAGE CONDITION
Temperature / Humidity -20°C ~ 60°C (-4°F ~ 140°F) , 10% ~ 90% (no condensation)
DIMENSIONS
Physical Please refer to Drawing
Carton TBD
WEIGHT
N.W. / G.W. 5 Kgs/6 Kgs
CONTAINER LOADED
20ft / 40ft / 40ft HQ TBD (Sets , By pallet)

TOUCH VIDEO INPUT ENHANCED PANEL POWER OTHERS
Resistive Touch AV-IN High Brightness Panel 24V DC-IN Motion Sensor
Projected Capacitive Touch AV Looping Sunlight Readable 9~36V DC-IN Light Sensor
Infrared Touch HDMI / DP Wide Viewing Angle 48V 72V DC-IN VR-knob Dimming
Protected Glass HD-SDI Wide Temperature 90V 125V DC-IN RS232 Remote On/Off
Optical Bonding   UV Film 110V 220V DC-IN Military Connector: MIL 38999
    Anti-Vandal   Metal Connector: M12 / M16
        Stainless 316 Enclosure
