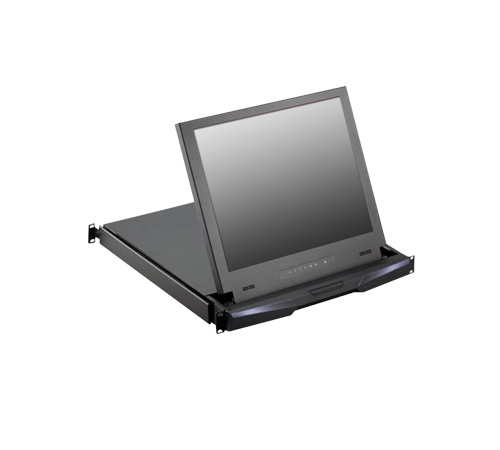

1U Rackmount 17" LCD Monitor Drawer 1280x1024 w/ VGA, DVI-D, HDMI w/ Speaker, 570mm / 22.5" Deep (Model: NP117-AV3.0)

1U Rackmount 17" TFT LCD Rackmount Monitor Drawer 1280x1024 Resolution VGA + DVI-D + HDMI w/ Speaker 570mm / 22.5" Deep

1U Rackmount 17" TFT LCD Rackmount Monitor Drawer 1280x1024 Resolution VGA + DVI-D + HDMI w/ Speaker 570mm / 22.5" Deep

Overview
Specifications
Download

Benifits:

(1U) 17-inch LCD display drawer
Native resolution of 1280 x 1024 with 16.7 million colors
Equipped with HDMI 1.4 and VGA video inputs
Features a shallow depth design measuring 570mm
Designed for easy installation by a single individual
Improved aesthetics with a molded front panel and a two-point locking mechanism
Comes with a standard 2-year warranty (extendable up to 5 years)

Options:

Dual stereo speakers for HDMI ( HS4.4 )
DVI-D + Audio input & output + Speakers ( DV4.4 )
S-Video + Composite + Speakers ( BNC )
3G / HD / SD-SDI Broadcast-grade input + Speakers ( SDI )
DC power : 12V / 24V / 48V / 125V / 250V
Projected Capacitive 10-pt / Capacitive 1-pt / Resistive 1-pt

Console Port
Video input	VGA + DVI-D + HDMI

LCD Panel
Panel size ( diagonal )	17"
Native resolution	1280 x 1024
Brightness ( cd/m² )	250
Contrast ratio ( typ. )	1000 : 1
Colors	16.7 M
Viewing angle ( L/R/U/D )	85/85/80/80
Response time ( ms )	5
Dot pitch ( mm )	0.264
Display area ( mm )	337.92H x 270.33V
Surface treatment	Haze 25%, Hard-coating
Surface hardness	3H
Backlight type	LED
MTBF (hrs)	30,000

Video Option
Digital	DVI-D	DVI-D single link
Analog	S-Video ( 4-pin )	NTSC & PAL
Analog	Composite ( BNC )	NTSC & PAL

Audio Option
Input	Connector	3.5mm stereo jack
Input	Impedance / Power level	30kQ / 750mV
Output	Connector	3.5mm stereo jack
Output	Resistance / Power level	30kQ / 2.8V
Speaker	Dual stereo	2W x 2

Power
Input	Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption	Screen on	Max. 22W
	Power saving mode	Max. 2W
	Power button off	Max. 1W

Environment
Operating temp.	0 to 55°C degree
Storage temp.	-20 to 60°C degree
Operating humidity	10~90%, non-condensing
Storage humidity	5 ~90%, non-condensing
Operating altitude	16,000 ft
Non-operating altitude	40,000 ft
Shock	10G acceleration ( 11ms duration )
Vibration	10~300Hz 0.5G RMS random vibration

Physical
Dimensions ( W x D x H )	Product	442 x 570 x 44 mm 17.4 x 22.5 x 1.73 inch
Dimensions ( W x D x H )	Packing	588 x 758 x 120 mm 23.1 x 29.8 x 4.7 inch
Weight	Net	10.5 kg / 23.1 lb
Weight	Gross	16.5 kg / 36.3 lb

Mounting Distance
Display Drawer	510 ~ 740 mm 20.1 ~ 29.1 inch

Compliance
EMC	FCC, CE
Safety	CE / LVD & UKCA
Environment	RoHS3 & REACH
