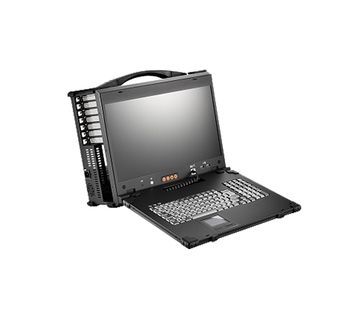

Chassis |
Rugged Aluminum portable enclosure with rubber corners |
Display |
17.3" LCD (1920x1080 Resolution) VGA connector or DVI or DP if adding video card |
Touch Screen |
Resistive USB interface Touch Screen |
K/B & Mouse |
Foldable USA language keyboard w/touchpad |
Mainboard |
Supermicro X12SPL-F, ATX Server board, CPU supports up to 270W TDP |
Slots Layout |
"1 PCIe 4.0 x16,1 PCIe 4.0 x8 (in x16 slot), 2 PCIe 4.0 x8, 3 PCIe 3.0 x8" |
CPU Type |
Intel Intel Xeon Gold 6348 Processor 42M Cache, 2.60 GHz FC-LGA4189, 235W |
TPM |
Supermicro Add-on Module AOM-TPM-9670V-S - Trusted Platform Module (TPM) 2.0 |
Chipset |
Intel C621A Chipset |
Memory |
256GB ECC DDR4 RDIMM (4x64GB) |
Video |
On-Board Graphic, Aspeed AST2600 BMC (Reserved VGA Port) or Add video card (optional) |
Data Drive |
Crucial 2.5" 4TB SSD, CT4000MX500SSD1 (Installed into the removable kit) |
OS Drive |
SAMSUNG 990 PRO w/ Heatsink SSD 2TB, PCIe Gen4 M.2 2280 Internal Solid State Hard Drive |
Ports |
5x USB 3.2 Ports(2 rear, 2 via header, 1 Type A), 6x USB 2.0 Port (2 rear, 4 via headers), 1x VGA Port, 1x COM Port(via 1 header), 2x RJ45 LAN Ports |
Removable Kit |
ICY DOCK 4 Bay 2.5 SAS & SATA SSD/HDD & (Ultra) Slim ODD Backplane Cage Enclosure, ToughArmor MB604SPO-B |
LAN |
Dual LAN with Intel i210 Gigabit Ethernet Controller |
Optical Drive |
Optical Drive |
Audio |
N/A (PCIe Sound card required if needed) |
Power Supply |
1U, 600W, 100~240VAC, Auto switch |
Software |
Microsoft Windows 11 Pro OS |
Cargo Case: |
Pelican Air Cargo Case 1620 with foam |
Warranty |
Standard One Year Limited Warranty - Parts and Labor |
Chassis Dimension |
417Wx 352Hx 186D mm (16.42"x 13.86"x 7.32") |
17" Resistive touch screen |
NVIDIA GeForce GT710 2G DDR3 PCI-E Video Card |
SWE-Windows 11 Pro (64-bit, DVD) |
SWE-SERVER2019 Essential (64-bit, DVD) |
SWE-SERVER2019 Standard-Base License (16 Core, DVD) |
|
Environment |
Operating |
Non-Operating |
Temperature |
0°C~50°C |
-20°C~60°C |
Relative Humidity |
10%~90% |
10%~95% |
Approval |
CE, FCC, RoHS |
