Drawer Features & Display Benefits |

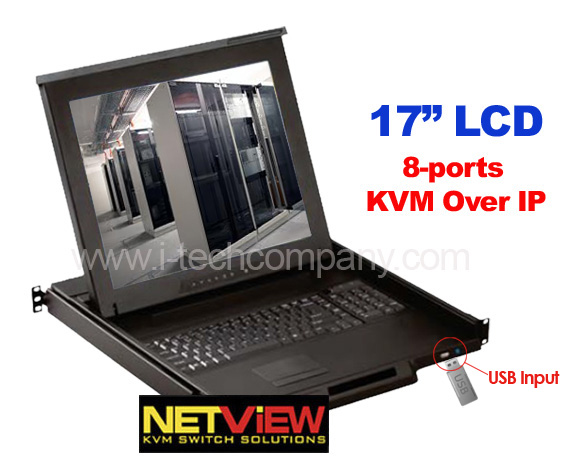

- 1U 17" or 19" LCD console drawer
- 104-key keyboard with either touchpad or trackball
- Short depth design of 460mm and 500mm respectively
- New enhanced aesthetics with molded front handle
- Front USB port for device access (USB Hub KVM only)
- 2 post rack mounting available
|
| |
| Options: |
- S-Video + Composite (BNC) or Audio input
- HDMI or DVI-D (either one)
- 48V, 24V or 12VDC power
|
| |
| |
Built-in USB Hub Usage & Connection  |
| |
| |
| |
Specifications: |
|
| LCD Panel |
|
| Manufacturer |
|
| Diagonal size |
17.1" widescreen TFT |
| Max. Resolution |
1280 x 1024 |
| Brightness (cd/m2) |
250 |
| Backlight |
CCFL |
| Colors |
16.7 M |
| Contrast Ratio (typ) |
1000 : 1 |
| Viewing Angle (H/V) |
160° x 160° |
| Active area (mm) |
338 x 270 |
| MTBF (hrs) |
50,000 |
| Signal input |
VGA |
| Casing Color |
Black ( RAL 9005 ) |
| Weight ( Single console ) |
|
| Net |
12 kgs
(26 lbs) |
| Gross |
16.6 kgs
(36.5 lbs) |
| Environmental |
|
| Operating |
0 to 50°C Degree |
| Storage |
-5 to 60°C Degree |
| Relative humidity |
5~90%, non-condensing |
| Shock |
10G acceleration ( 11 ms duration ) |
| Vibration |
5~500Hz 1G RMS random vibration |
| Regulatory |
cUL, FCC, CE |
| Power |
|
| Input |
Auto-sensing 100 to 240VAC, 50 / 60Hz |
| Consumption |
Max. 48 Watt, Standby 5 Watt |
| Product Dimensions ( Single console ) |
|
| Product |
441.6 x 460 x 44 mm / 17.4 x 18.1 x 1.73 inch |
|
| |
| |
Console Cable |
|
| NE-6 |
| 6 feet Combo KVM cable ( bundle ) |
| - VGA + USB, server end |
| - DB15 ( VGA, USB KB & MS ), console port |
|
| |
| |
Keyboard Selection |
Supporting layouts  |
| |
| |
 |
| |
| |
USB Hub DB-15 IP KVM Benefits |
- VGA-USB DB-15 KVM with either 8 or 16 ports in 1U
- IP remote access across the world wide web
- 2 x USB 2.0 port sharing USB peripheral for computers
- Mix USB & SUN with Multi-Platform switch capability
- Support resolution up to 1920 x 1080
- SUN 1152 x 900 resolution compatible
- Cost efficient remote server management between national / global sites
Note: No Daisy chain function on USB Hub KVM model |
| |
| |
Switch Features & Options |
- Multi lingual on screen display menu
- Control hardware and software systems from a remote location without physically being at the server’s location
- Advanced user profiles and configurable OSD hot key combinations
- 48V, 24V or 12V DC power options
|
| |
| |
| |
KVM Specification
| ■ KVM Port |
| Number of ports: |
8 or 16 |
| Connector: |
DB-15 combo connector |
| Connectivity: |
Combo 2-in-1 VGA + USB KVM cable, 6, 10 or 15 feet |
| ■ Local Console |
| Graphic Connector: |
1 x DB-15 |
| Resolution: |
Up to 1920 x 1200 |
| Input device: |
2 x USB type A for keyboard & mouse |
| USB hub: |
2 x USB type A for sharing other peripheral devices among the computers |
| ■ IP Remote Console |
| Connector: |
RJ45 Ethernet |
| User management: |
15-user login, 1 x active user |
| Network protocol: |
DHCP / BOOTP / DNS |
| Security: |
SSL v3, RSA, AES, HTTP / HTTPs, CSR |
| Resolution: |
Up to 1600 x 1200 |
| Browser: |
IE, Firefox, Safari, Netscape |
| ■ Compatibility |
| Multi-platform: |
Mix PCs, SUN and Mac G3 / G4 Mac / iMac |
| Support: |
Windows 7 / Vista / 2003 / XP, Linux, Unix |
| ■ Power |
| Input: |
Auto sensing 100 to 240VAC, 50 / 60 Hz |
| Option DC: |
12V / 24V / 48V DC input |
| Consumption: |
Max. 12 Watt, Standby 5 Watt |
|
| ■ Regulatory : |
|
| Safety: |
FCC & CE certified |
| Environment: |
RoHS2 & REACH compliant |
| ■ Environmental |
| Operating: |
0 to 50°C |
| Storage: |
-5 to 60°C |
| Relative humidity: |
90%, non-condensing |
| Shock: |
50G peak acceleration (11ms, half-sine wave) |
| Vibration: |
58-100Hz / 0.98G (11ms / cycle) |
| ■ Product Information |
| Dimension (W x D x H): |
443 x 171 x 44 mm / 17.4 x 6.7 x 1.73 inch |
| Net weight: |
3 kg / 6.5 lb |
| ■ Packing Information |
| Dimension (W x D x H): |
500 x 400 x 90 mm / 19.7 x 15.7 x 3.5 inch |
| Gross weight: |
5 kg / 11 lb |
|
| |
| |
KVM port connection |
 |
| |
| |
IP & Local console connection |
 |
| |
| |
| |
| |
| |
