NW117Xe-SDI
  • Overview
  • Specifications
  • Download

Drawer Features & Display Benefits

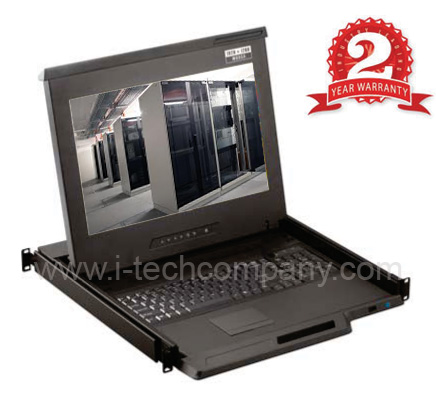

  • 1U 16.2" LCD console drawer
  • 1920 x 1200 WUXGA native resolution / 16.7M colors ( 8-bit )
  • HDMI 1.4 + DVI-D + VGA video input / USB KB / MS
  • 104-key keyboard with either touchpad or trackball
  • Short depth design of 480mm
  • One Man installation design
  • New enhanced aesthetics with molded front handle
  • 2-year standard warranty ( upgradable up to 5 years )

Options:
  • Front USB hub port for device access
  • 3G / HD / SD-SDI Broadcast-grade input
  • Audio input & output
  • DC power : 12V / 24V / 48V / 125V
  • MAC or SUN Micro keyboard options available
  • 2-post rack mounting brackets ( ORB-2.1 )






3G / HD / SD-SDI input
ITech’ SDI input is an ideal solution for the broadcast-grade video and high resolution CCTV market.

Designed for use with NetView Full HD 1080p and ultra high resolution 1920 x 1200 LCD displays, ITech provides a SDI input module without using additional space or power and it comes standard with a 2-year warranty.
INPUT 3G-SDI IN BNC x 1 / 0.8Vp-p ( 75 ohm )
3G-SDI OUT BNC x 1 / Active through, equalized & relocked
Standard Compliance Video SMPTE 425M / 274M / 296M / 125M ITU-R BT.656
Audio SMPTE 299M / 272M-C
Compatible Video Format 3G-SDI 1080p
1080p
1080i
720p		 @60 / 50Hz, 4:2:2
@30 / 25 / 24Hz, 4:4:4
@60 / 50Hz, 4:4:4
@60 / 50Hz, 4:4:4
HD-SDI 1080p
1080i
720p		 @30 / 25 / 24Hz, 4:2:2
@60 / 50Hz, 4:2:2
@60 / 50Hz, 4:2:2
SD-SDI 480i @60Hz, 4:2:2
ITU-R BT.656 576i @50Hz, 4:2:2
Compatible Audio Format 3G-SDI

48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video
HD-SDI

48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video
SD-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized / Asynchronized Video
Max. Transmission Distance
75 ohm coaxial cable		 3G-SDI 150m at 2.97Gb/s
HD-SDI 250m at 1.485Gb/s
SD-SDI 480m at 270Mb/s
Console Port
Video input HDMI 1.4 + DVI-D single link + VGA
KB / MS Combo ( USB or PS2 )
VGA console 6ft cable : NB-6 or Drawer end : DB-15 ( VGA + USB KB / MS )
Server end : VGA + USB type A
DVI-D console 6ft cable : NX-6 Drawer end : DVI-D + DB-15 ( USB KB / MS )
Server end : DVI-D + USB type A

LCD Panel
Panel size ( diagonal ) 16.2"
Native resolution 1920 x 1200
Brightness ( cd/m˛ ) 300
Contrast ratio ( typ. ) 800 : 1
Colors 16.7 M, 8-bit
Viewing angle ( L/R/U/D ) 89/89/89/89
Response time ( ms ) 30
Dot pitch ( mm ) 0.191
Display area ( mm ) 343.8H x 214.9V
Surface treatment Anti-glare, Hard-coating
Surface hardness 3H
Backlight type LED
MTBF (hrs) 20,000

Mounting Distance
Single console drawer 490 ~ 720 mm
19.3 ~ 28.3 inch
Console w/ KVM drawer 490 ~ 800 mm
19.3 ~ 31.5 inch

Audio Option
Input Connector 3.5mm stereo jack
Impedance / Power level 30kΩ / 750mV
Output Connector 3.5mm stereo jack
Resistance / Power level 30kΩ / 2.8V
Speaker Dual stereo 2W x 2

Power
Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption
(console / KVM)		 Screen on Max. 34W / Max. 59W
Power saving mode Max. 4W / Max. 29W
Power button on Max. 1W / Nil

Environment
Operating temp. 0   to 55°C degree
Storage temp. -20 to 60°C degree
Operating humidity 20~90%, non-condensing
Storage humidity 5 ~90%, non-condensing
Operating altitude 16,000 ft
Non-operating altitude 40,000 ft
Shock 10G acceleration ( 11ms duration )
Vibration 10~300Hz 0.5G RMS random vibration

Compliance
EMC FCC & CE certified
Safety CE / LVD certified
Environment RoHS2 & REACH compliant

Physical
Dimensions;
( W x D x H ) 		Single console 442 x 480 x 44 mm
17.4 x 18.9 x 1.73 inch
Console w/ KVM 442 x 580 x 44 mm
17.4 x 22.8 x 1.73 inch
Packing
( W x D x H ) 		Single console / Console w/ KVM 590 x 808 x 140 mm
23.2 x 31.8 x 5.5 inch
Net weight Single console 10.9 kg / 24 lb
Console w/ KVM 12.1 kg / 26.6 lb
Gross weight Single console 15.8 kg / 34.8 lb
Console w/ KVM 18.1 kg / 39.8 lb
