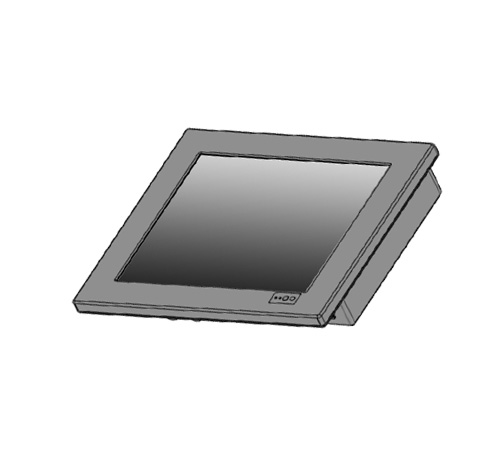

17" Military LCD Full IP67 Touch Panel PC w/ Intel i5, Intel UHD620, 16GB RAM, 500GB, MIL-STD-810G (Model: Nmil-NP81700-i5)

17" LCD 19" 8U Rackmountable Rugged Fully-sealed IP67 6061 T6 Aluminum alloy with Anti-Corrosion Treatment Touch Panel PC, Intel 8th Gen. i5 8265U, Intel UHD620, 16GB DDR4, 500GB M.2 with Compliant to MIL-STD-810G

17" LCD 19" 8U Rackmountable Rugged Fully-sealed IP67 6061 T6 Aluminum alloy with Anti-Corrosion Treatment Touch Panel PC, Intel 8th Gen. i5 8265U, Intel UHD620, 16GB DDR4, 500GB M.2 with Compliant to MIL-STD-810G

Nmil-NP81700-i5
  • Overview
  • Specifications
  • Download

Features:

  • Mechanical Housing : IP-67 100% Fully-sealed 6061 T6 Aluminum alloy with anti-corrosion treatment
  • Rack-Mount : 19" 8U Rackmountable
  • Power Input : DC9~36V
  • EMI Mesh : Yes
  • LCD Size : 17"
  • Brightness : 350 cd/m2
  • Contrast Ratio : 800 : 1
  • Processor : Intel 8th Gen. i5 8265U 1.9~3.9GHz fanless high-end processor
  • Graphics : Intel UHD620
  • RAM : 16GB DDR4 2400MHz SO-DIMM RAM
  • Storage : 500GB M.2 2280 NVMe Super Fast SSD
  • Power Input : DC9~36V
  • Power Supply : Military isolated power supply
  • Environmental : compliant to MIL-STD-810G

Mechanical Front Bezel Military grade aluminum alloy 6061 T6
Treatment Chromate Anti-corrosion treatment
Finish Powder coating in semi-gloss black
Chassis Rugged galvanized steel with anti-corrosion treatment
Fanless Design 100% fully-sealed fanless design
EMI Mesh EMI Mesh Yes, built in EMI mesh
Touch Touch Technology 5W Resistive Touch
Touch Device Fingers, Gloves, Stylus pen
IP Rating IP Rating 100% IP-65 rating
Mount Front Mount Yes, front mount
VESA Optional at your request
LCD Module LCD Size 17"
LCD Grade Military grade LCD module
Resolution 1280 x 1024
Brightness 350 cd/m2
Contrast Ratio 800 : 1
Display Color 16.7 M
View Angle 80º / 80º / 60º / 80º
Main Board Mother-board Grade Military grade mother-board
Processor Generation Intel 8th Generation I5-8265U fanless processor
CPU No./Speed 4-Core 1.9~3.9GHz high speed CPU
Power Consumption Average 15 W, Turbo 25W, Slow 10W
Cache 4MB smart cache memory
Graphics Graphics Engine Intel UHD 620
Direct X 12
Open GL 4.5
System RAM RAM 16GB DDR4 2400MHz SO-DIMM RAM
Expansion 32GB
RAM Type DDR4 2400MHz SO-DIMM type
Storage Storage Capacity 500GB M.2 SSD
Interface M.2 2280 NVMe ultra fast
I/O Port Serial Port 8 x Isolated RS422 serial ports with IP68 D-38999 Mil. connector
Ethernet 2 x Gb Ethernet with IP68 D-38999 Mil. Connector
USB 4 x USB2.0 with IP-68 D-38999 Mil. Connectors
HDMI 1 x HDMI with IP-68 D-38999 Mil. Connector
DC 1 x DC with IP-68 D-38999 Mil. connector
Power Supply Power Input DC9~36V Wide Input
Power Grade Military grade power supply MIL-STD-1275D compliant
Isolation Fully isolated
Polarity Reverse Polarity Reverse fully protected
Fuse Automatically recovered
Lightning Protected Lightning protected
Power Consumption Average 37 Watts
Turbo Up 47 Watts
Slow Down 29 W
Heater Module Heater Module Optional for your request
Dimensions W x D x H 440 x 370 x 84
Weight Weight TBD
Operating System Operating System Windows 11, 10, Linux etc.
Environmental Operating Temperature 0 to +50º C
Storage Temperature -30 to + 85º C
Humidity 5~95% R.H.at 40C, non condensation
Vibration MIL-STD-810F compliant
Shock MIL-STD-810F compliant
Salt Fog MIL-STD-810F compliant
Fungus MIL-STD-810F compliant
EMI / EMC CE Approved
FCC Approved
MIL-STD-461E Military Test Cost is required
