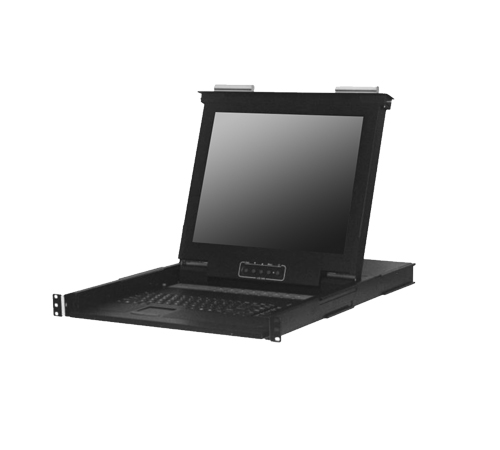

17" A-Grade LCD Panels, Combo DB15 single port KVM switch w/ 220VDC Terminal Block "+" and "-". (Model: AVP117e-220VDC)
17" A-Grade LCD panels, combo DB15 single port integrated KVM switch & with an option remote IP console. 220VDC Terminal Block "+" and "-"
Main Feature
- Support combo interface, VGA-USB & VGA-PS/2.
- Durable 104-key keyboard and touch pad.
- Quick and simple installation.
- Self-locking and auto release rails for ultra-convenience.
- Port selection via push buttons or On-Screen-Display (OSD).
- Dedicated daisy chain port to expand up to 240 servers.
- Access Control List (ACL) security function for up to 8 independent user accounts.
X
Inquiry/Quote Request
- Overview
- Specifications
- Ordering Information
- Download
- Contact Sales
These LCD console drawers provides a variety of features that simplify to access servers to making system monitoring, troubleshooting and software upgrades. The self-locking rails when in the fully extended open position and the ultra convenient auto lock release when the LCD panel is closed, make for simple and hassle free operation. Available with 17" or 19" A-Grade LCD panels, combo DB15 single, 8 or 16 port integrated KVM switch & with an option remote IP console.
Features
- Support combo interface, VGA-USB & VGA-PS/2.
- Durable 104-key keyboard and touch pad.
- Quick and simple installation.
- Self-locking and auto release rails for ultra-convenience.
- Port selection via push buttons or On-Screen-Display (OSD).
- Dedicated daisy chain port to expand up to 240 servers.
- Access Control List (ACL) security function for up to 8 independent user accounts.
Optional Remote IP Access:
- An expansion slot allows you to add an optional KVM over IP module to enable remote access to your servers.
- Gain BIOS level access to your servers for system maintenance, support or failure recovery via secure SSL authentication and encryption.
| Part no. | AVP117e-220DC | AVP117S8e-220DC | AVP117S16e-220DC | |
| Direct no. of Computers | 1 | 8 | 16 | |
| Maximum no. of Computers | 1 | 232(Daisy Chain) | 240(Daisy chain) | |
LCD |
Size | 17" | ||
| Backlight | LED | |||
| Resolution | 1280*1024 | |||
| Max. Color | 16.7M | |||
| Luminance | 250cd/m2 | |||
| View Angel (H/V) | 176 / 170 | |||
| Contrast Ratio | 1000 : 1 | |||
| Port Selection | N/A | Push Button, OSD or Hotkey | ||
| Expansion Slot | N/A | Yes, option for Remote IP Access | ||
| KB/Mouse Emulation | USB & PS2 | |||
| Rack Depth | 500mm to 1100mm ( rack cabinet front rails to rear rails ) | |||
| Power | 220VDC Terminal Block "+" and "-". | |||
| Environment | Operation temp: 0 to 50°C Storage temp: -20 to 60°C Humidity: 10% - 90%, non-condensing Shock: 10G acceleration ( 11ms duration) Vibration: 17 to 500Hz 1G PTP |
|||
| Physical Dimensions / Net Weights | 448x42x580mm (WxHxD) / 12.0KG | |||
| Packing Dimensions / Gross weights | 715x140x780mm (WxHxD) / 18.0KG | |||
| Accessory | ||||
| 1.8meter IEC Type Power Cord (1.8meter VGA& PS2Cable + 1.8meter USB A Type Cable for AVP117e/119e | ||||
| Option Related Item | |||
| AB-6 | 1.8meter 2-in-1 KVM Cable-USB&VGA | AC-6 | 1.8meter 3-in-1 KVM Cable-PS/2&VGA |
| AB-10 | 3.0meter 2-in-1 KVM Cable-USB&VGA | AC-10 | 3.0meter 3-in-1 KVM Cable-PS/2&VGA |
| AB-15 | 5.0meter 2-in-1 KVM Cable-USB&VGA | AC-15 | 5.0meter 3-in-1 KVM Cable-PS/2&VGA |
| AIP101 | KVM over IP module for Remote Bios Level Access | ||
| Part no. | AVP117e-220DC | AVP117S8e-220DC | AVP117S16e-220DC | |
| Direct no. of Computers | 1 | 8 | 16 | |
| Maximum no. of Computers | 1 | 232(Daisy Chain) | 240(Daisy chain) | |
