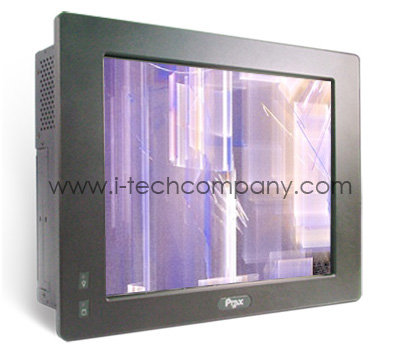

17" High Performance and Low Power Panel PC (Model: PPC7527)
17" High Performance and Low Power Panel PC (Model: PPC7527)
PPC7527
- Overview
- Specifications
- Download
| Systems |
|
| CPU Support |
Intel � Pentium� M / Celeron� M CPU up to 1.8 GHz |
| Chipset |
Intel �910GMLE + ICH6M |
| Memory Support |
1 x 200-pin DDR2 SO-DIMM, 512MB DDR2 SO-DIMM (up to 2GB) |
| Front Bezel |
Aluminum |
| Power Supply |
AC 110W power supply |
| Drive Bay |
1 x 2.5" SATA HDD, 1 x IDE CF slot on board, 1 x slim CD-ROM |
| O.S. Support |
Windows XP/XPE/CE.net, Linux Redhat 8.0/9.0 |
| Dimension |
440 x 344 x 117.3mm (17.32" x 13.54" x 4.60") |
| Weight |
10.5Kg |
| VESA Mounting Support |
75mm /100mm VESA bracket (optional) |
| Certificate |
CE / FCC |
| I/O Ports |
|
| USB |
2 x USB2.0 |
| KB / Mouse |
1 x PS/2 port ( KB/MS for Y-cable) |
| Audio |
1 x Line-in, 1 x Line-out, 1 x Mic-in |
| Serial Port |
3 x COM port (COM 1 & COM 3 for RS-232, COM 2 for RS232/RS422/RS485 selectable, All COM port support +5V/+12V selectable) |
| Parallel Port |
1 x parallel port (SPP/EPP/ECP, share with Digital I/O ) |
| Digital I/O |
4 in / 4 out (share with parallel port) |
| LAN |
2 x LAN (1 x 10/100, 1 x 10/100/1000) |
| VGA |
1 x DB-15 VGA Interface |
| Brightness Control |
VR on rear panel |
| Expansion Slots |
1 x PCI or 3 x PCI slot (optionl) |
|
| Display |
|
| LCD |
17" TFT LCD |
| Max. Resolution |
1280 x 1024 |
| Brightness |
300 cd/m |
| Touch Screen |
7W Analog resistive (USB interface) |
|
| Environment |
|
| Operation Temperature |
0陡40蚓(32陡104蚌) |
| Storage Temperature |
-20陡60蚓(-4陡140蚌) |
| Humidity |
20~90% |
 |
|
|
| Ordering Info |
| Order Number |
Description |
| PPC-7527 |
Panel PC with 17" LCD, S478 Pentium� M CPU board, resistive touch screen, 110W AC power supply |
| PPC-7500-1P |
1 x PCI riser card for PPC7525 / 7527 |
| PPC-7500-3P |
3 x PCI riser card for PPC7525 / 7527 |
| PPC-VESAKIT |
VESA bracket |
|
