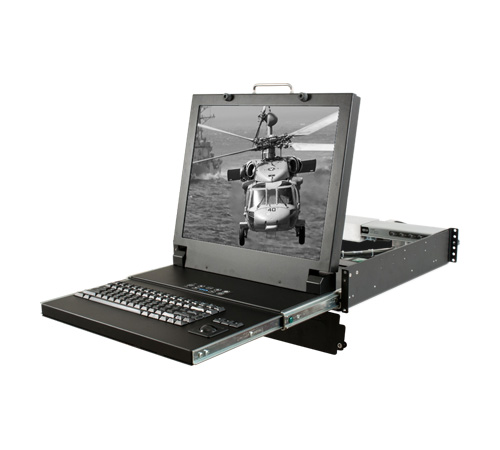

17.3" Industrial-/Military-Grade, 2U Rack Mount, Standard Flip-up LCD Monitor 1920 x 1080, 400 Nits, 600:1, Viewing: 15.03" x 8.46", Response time 37/3 ms, Shock: 50 G, 20 ms ½ Sine Wave, Vibration: 1.5 G (10-200 Hz) (Model: Gmil-2W17)

Main Feature

- 15"/17"/19"/20" Diagonal Active Matrix TFT LCD Display
- XGA (1024 x 768 pixels) to WUXGA (1920 x 1080 pixels) Resolution
- Wide Viewing Angle (Horizontal & Vertical)
- High Brightness & Contrast Enhances Display Quality
- Fast Response Time Ideal for Real-Time and Video Applications

Overview
Specifications
Download
Contact Sales

ENCLOSURE

Rugged, All-Metal Construction Designed to Satisfy Industrial or MIL-STD-810-F Requirements
User-Adjustable LCD Display Friction Hinge for High Shock/Vibration Environments
Compact Enclosure Ideal for Desktop, Transportable or Rack Mount Applications
Optional 19" Rack Adaptor Kit
-Occupies Only 2U (3.5") Vertical Rack Space
-Adjustable Mounting Brackets for Racks from 18" to 30"
-Unique Locking Mechanism to Secure Display Head
-Bezel Hinges at Base Improve Safety
-Conserves Operator Space by Extending 16.75" to 18.0" when Deployed

DISPLAY

15"/17"/19"/20" Diagonal Active Matrix TFT LCD Display
XGA (1024 x 768 pixels) to WUXGA (1920 x 1080 pixels) Resolution
Wide Viewing Angle (Horizontal & Vertical)
High Brightness & Contrast Enhances Display Quality
Fast Response Time Ideal for Real-Time and Video Applications

VIDEO CONTROLLERS

Support for Interlaced and Non-Interlaced Video Sources
Support for Separate, Composite, Sync-On-Green and DVI-D Standards
Support for NTSC, SECAM, PAL, RS-170 Video with Input Format of Composite Video, S-Video and Component Video (YCrCb) [Optional]
Resolutions to 1920 x 1200 @ 60 Hz; Sub-resolutions to 75 Hz
Intuitive On-screen Menus for Display Calibration and User's Control
Advanced Imaging Features
-Auto Adjust, Brightness/Contrast/Color Adjustments, Image Expansion, Image Zoom, Foreign Languages, PIP, PBP, More

KEBOARD / POINTING DEVICE

Commercial-, Industrial- and Military-Grade Keyboards
Many Sealed Keyboards Available that Meet MIL-STD-810 and MIL-STD-901 Shock and Vibration Requirements
1-3/8" Diameter Sealed Trackball

POWER

+12 VDC Operation
Low Power Consumption (<50 Watts)

OPTIONS

NVIS-Compatible Displays Compliant with MIL-STD-3009
Sunlight Readable Displays and Other Optical Enhancements
Separate 1U Power Supply Mounts to Rear of Rack in Same Vertical Rack Space
Separate Rack Mountable Keyboards (Commercial-, Industrial- and Military-Grade)
Support for DVI-D Video, HDMI Video, NTSC Video (Composite)
Protective Glass Display Overlay for SL2-15X
Integrated 4-Port KVM Switch
Integrated CAC (Common Access Card) Smart Card Reader

DISPLAY
Size (Diagonal)	Viewing Area (W x H)	Resolution (Pixels)	Number of Colors	Luminance (0° Max.)	Contrast (Max.)	Response Time (Rise/Decay)	Horizontal Viewing Angle	Vertical Viewing Angle	Shock	Vibration
17.3"	15.03" x 8.46"	1920 x 1080	16.7 Million	400 Nits	600:1	37/3 ms	±80°	+60°, -80°	50 G, 20 ms ½ Sine Wave	1.5 G (10-200 Hz)

MTBF
Display	LED Backlight	LED Controller	Power Supply (Optional)
50,000 Hours (Minimum)	50,000 Hours (Minimum)	182,000 Hours (Minimum)	Depends on Supply Selected

ENVIRONTMENTAL
Temperature, Operating	Temperature, Storage	Humidity, Operating	Humidity, Storage	Altitude, Operating	Altitude, Storage
0° C to 70° C	-20° C to 70° C	5% to 95% RH Non-condensing	5% to 95% RH Non-condensing	10,000 Feet	40,000 Feet

MECHANICAL
Dimensions (H x W x D)	Construction	Finish	Weight, Operating	Weight, Shipping
2.88" x 16.00" x 17.00"	5052-H32 Aluminum/Steel	Black Matte Powder Coat & Clear Iridite	19 Pounds	28 Pounds

VIDEO CONTROLLER
Display Supported	640 x 480 VGA	800 x 600 SVGA	1024 x 768 XGA	1280 x 1024 SXGA	1600 x 1200 UXGA	1920 x 1200 WUXGA	Scaling	NTSC / SECAM / PAL / RS-170	Video Supported
All	60, 72, 75 Hz	56, 60, 72, 75 Hz	60, 70, 75 Hz	60, 75 Hz	60 Hz	60 Hz	On/Off	-	Separate, Composite, Sync-On-Green, DVI-D
All	60, 72, 75 Hz	56, 60, 72, 75 Hz	60, 70, 75 Hz	60, 75 Hz	-	60 Hz	On/Off	-	Separate, Composite, Sync-On-Green, DVI-D
All	60, 72, 75 Hz	56, 60, 72, 75 Hz	60, 70, 75 Hz	60, 75 Hz	-	60 Hz	On/Off	Digital Processor, Picture-In-Picture	Separate, Composite, Sync-On-Green, DVI-D

Most common video inputs listed. See below for a comprehensive list of supported video standards. Speak with a Sales Engineer for more information.
Most common video modes listed. Other video modes supported. Speak with a Sales Engineer for more information.
Supports advanced features such as Live Video, Picture-In-Picture (multiple user-selectable sizes), and Picture-By-Picture.
Video controller 115 is obsolete and shown for reference only.
