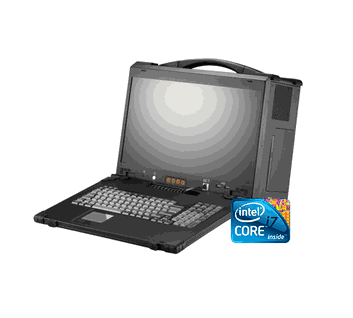

17.3" LCD Rugged Aluminum Extrusion portable enclosure with Rubber Corners. Support Micro ATX Motherboard (Model: BPCW1730HD-i7)
17.3" LCD Rugged Aluminum Extrusion portable enclosure with Rubber Corners. Support Micro ATX Motherboard (Model: BPCW1730HD-i7)
Main Feature
- 17.3" FHD LCD display, 1920x1080, LED backlight
- Support Micro ATX Motherboard
- Offer 4 full length slots expansion capability
- Industrial multi-languages keyboard with touchpad
- 1 U600W power supply, 100-240VAC
- Support2x5.25", 1x2.5" hidden, Ixslim DVD-RW
- Carrying case to manage portable PC with ease
X
Inquiry/Quote Request
- Specifications
- Download
| Display: | 17.3" LCD (1920x1080 Resolution) DVI connectors |
| K/B & Mouse: | Foldable USA language keyboard w/touchpad |
| Platform: | Micro ATX Form factor, Supermicro X10SLQ board |
| Slots Layout: | 1x PCI-E 3.0 x16, 1x PCI-E 2.0 x4, 1x PCI-E 2.0 x1 |
| CPU Type: | Intel Core i7-4790 Haswell Processor 3.6GHz 5.0GT/s 8MB LGA 1150 CPU |
| Chipset: | Intel Q87 Express Chipset |
| Memory: | 16GB DDR3 DIMM (2x 8GB DDR3, Max. 32GB) |
| Video: | NVIDIA GeForce GT 710 2GB GDDR5 PCI-Express Video Card |
| Removable Kit: | 4x2.5" Removable Kit (Tool-less drive installation) |
| RAID: | On-Board RAID, Support Raid 0, 1, 5, 10 |
| Drives: | 1x 2TB HDD + 1x 275GB SSD (both be integrated into removable kit) |
| Rear Panel Ports: | LAN : 2x RJ45 Gigabit Ethernet LAN ports |
| USB : | 2x USB 3.0 ports, 4x USB 2.0 ports |
| Audio: | 7.1 HD Jacks |
| Audio: | Realtek ALC888S chipset, 7.1 channels |
| LAN: | Dual Gigabit Ethernet LAN ports (1x Intel i217LM & 1x Intel i210AT |
| Optical Drive: | Slim DVDRW |
| Power Supply: | 1U, 600W, 100~240VAC, Auto switch |
| Software: | None, Optional |
| Carrying Bag: | Complimentary carrying bag with wheels |
| Warranty: | Standard one year manufacturing warranty |
| Dimension: | 417Wx 352Hx 186D mm (16.42"x 13.86"x 7.32") |
| Packaging: | Double Boxes with foam (23"x22"x15") |
| Temperature | |
| Operating | 0°C ~ 50°C |
| Non-Operating | -20°C ~ 60°C |
| Relative Humidity | |
| Operating | 10%~90% |
| Non-Operating | 10%~95% |
| Approval | CE, FCC, RoHS |
