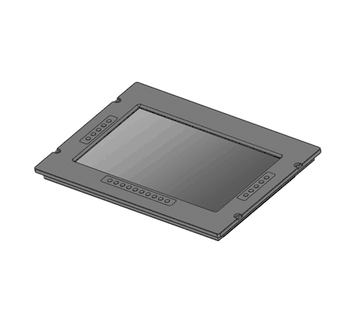

NHDW Series: IP67 17.3" Rugged Display, 1920 x 1080 FHD,15 User Program. Keys, 3 x RS170 Video In, 1 x RS170 Out, 1 x HD-SDI In, 1 x HD-SDI Loop Out (Model: NHDW1750)

NHDW Series: IP67 17.3" Rugged Display, 1920 x 1080 FHD,15 User Program. Keys, 3 x RS170 Video In, 1 x RS170 Out, 1 x HD-SDI In, 1 x HD-SDI Loop Out (Model: NHDW1750)

NHDW Series: IP67 17.3" Rugged Display, 1920 x 1080 FHD,15 User Program. Keys, 3 x RS170 Video In, 1 x RS170 Out, 1 x HD-SDI In, 1 x HD-SDI Loop Out (Model: NHDW1750)

Main Feature

    • 17" LCD
    • Resolution: 1920 x 1080
    • Brightness: 800nits
    • 15 User Program
    • Military Grade power supply, MIL-STD-1275 compliant
    • Design to meet MIL-STD-461, MIL-STD-704, MIL-STD-810 and MIL-STD-1275
Inquiry/Quote Request
NHDW1750
  • Specifications
  • Download
  • Contact Sales
LCD Display LCD Size 17.3" Diagonal
LCD Module Grade Mil.-Ind. grade
Backlight LED
Resolution 1920 x 1080
Aspect Ratio 16 : 9
Luminance 800 cd/m2
Display Color 16.7 M
Viewing Angle 80 / 80 / 60 / 80
Protect Glass Protective Glass Chemical Strengthen glass
EMI Micro Mesh Yes
Mechanical Material AISI 64430 Aluminum alloy
IP Rating IP-67
Surface Treatment Powder Coated in black
Mounting Front Mount Support Front Mount, Flush Mount
VESA Mount Support VESA Mount
I/O Port RS-170 Input 3 x RS-170 Video Inputs up to 1080p 60 high definition video with mil connector
RS-170 Output 1 x RS-170 Video Output up to 1080p 60 high definition video with mil connector
HD-SDI In 1 x SMPTE  In/Out (3G/HD/SD-SDI) – (SMPTE 424M/292M/259M)
HDMI In 1 x HDMI In with Mil. circular connector
Option  1 x HDMI Out (optional) with Mil. circular connector
DC Connecter 1 x DC16~60V with MIL-C-38999 circular connector
Control Button User Programmable Key Front Left : F1, F2, F3, F4, F5
User Programmable Key Front Right : F6, F7, F8, F9, F10
User Programmable Key Center Bottom : F11, F12, F13, F14, F15
OSD Control Button 5 OSD Control Buttons : On-Off, Menu, Up, Down, Auto,
Dimming Range 0 ~ 100% Dimming Range
Power Consumption Total Power Around 30~35 Watts
Power Supply Power Supply Grade Military Grade power supply, MIL-STD-1275 compliant
Polarity Reverse Protect. Polarity Reverse Fully protected and auto recovery
Surge, Lightning Protect Surge and Lightning Protected
Power Input Range DC 16~60V Ultra Wide Range
Heater Heater Module Optional heater module available at your option
Dimension W x H x D 500 (W) x 342 (H) x 75 (D) mm
Environmental MIL-STD-461 Design to meet
MIL-STD-704 Design to meet
MIL-STD-810 Design to meet
MIL-STD-1275 Design to meet
