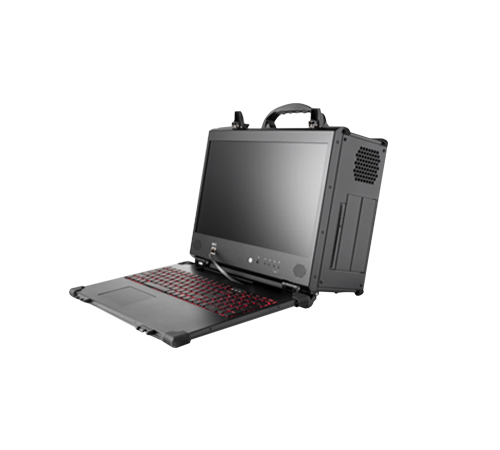

17.3" FHD 1920x1080, Rugged Portable Enclosure PC, Hot-Swappable Hard Drives w/ Intel Core i5 (Model: ALXW1730-i5-IB1)

17.3" FHD 1920x1080, Rugged Portable Enclosure PC, Hot-Swappable Hard Drives with Intel Core i5, Windows 11, GTX 1660 Ti 6GB Graphics Card

17.3" FHD 1920x1080, Rugged Portable Enclosure PC, Hot-Swappable Hard Drives with Intel Core i5, Windows 11, GTX 1660 Ti 6GB Graphics Card

Inquiry/Quote Request
ALXW1730-i5-IB1
  • Overview
  • Specifications
  • Download
VERSATILE PLATFORM
ALXW1730 comes with highly sought-after features such as hot-swappable hard drives, 4 full-length expansion slots, and more. It can be configured with many special add-on cards tailored to your specific unique applications.

HIGH-PERFORMANCE
Some expect the ALXW1730 to sacrifice some power because of its compact design. However, the ALXW1730 is packed with high-performance capabilities, supporting the latest CPUs and graphics cards.

LIGHTWEIGHT AND COMPACT
The chassis only weighs approximately 165 pounds. Its dimensions are 16.50*W x 13.62"H x 7.25*D.


Features:
  • ASUS TUF Gaming B660M-PLUS WiFi D4 LGA 1700(Intel 12th Gen)
  • Intel Core i5 (12th Gen) i5-12500 3 GHz Processor
  • Noctua NH-L9i-17xx, Premium Low-Profile CPU Cooler for Intel LGA1700
  • PNY GeForce® GTX 1660 Ti 6GB Graphics Card
  • SAMSUNG 980 PRO 500GB PCIe NVMe Gen4 Internal Gaming SSD M.2
  • G.SKILL Ripjaws V Series 16GB (2 x 8GB) 288-Pin PC RAM DDR4 3200 (PC4 25600)
  • Syba Dual 2.5 Gigabit Ethernet PCI Express PCI-E Network
  • DTech DVI Male to VGA Female Adapter DVI-I 24+5 Port Converter
  • Windows 11
PROCESSOR Intel Core i5 (12th Gen) i5-12500 3 GHz Processor
GRAPHICS PNY GeForce® GTX 1660 Ti 6GB Graphics Card
RAM Up to 768GB DDR4 RAM
DISPLAYS 17.3" FHD 1920x1080 - 300 Nits
Upgradable Options:
1000 Nits,
UHD 3840x2160,60hz Display
2k, 144hz Displays
Projected Capacitive
Or Resistive Touchscreen Options
STORAGE SAMSUNG 980 PRO 500GB PCIe NVMe Gen4 Internal Gaming SSD M.2
EXPANSION SLOTS Up To 4
POWER SUPPLY 580w 100/240vac, 50/60hz
Auto-Switching 80 Plus Gold Rated Power Supply
DIMENSIONS AND WEIGHT Height: 13.62" (346mm)
Width: 16.50" (410mmj
Depth: 7.25" (184mm)
Weight:-23 Lbs (10.4kg)
MATERIAL Metal/Aluminum Color: Black
SCREEN: 17.3" , 1920x1080, 16:9 Aspect Ratio
KEYBOARD QWERTY Keyboard
OTHER FEATURES Padded Carrying case with wheels
CASE SIZE 14.05"H x 16.46"W x 6.96"D
SYSTEM WEIGHT 25 lbs
