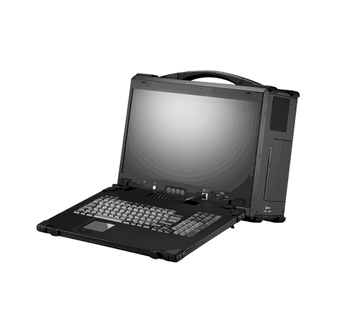

17.3" Rugged Aluminum portable enclosure LCD (1920x1080 Resolution) DVI Connectors. 300 cd/m2. 400:1 Contrast Ratio (Model: BPCW1730HD-i7-8700)

17.3" Rugged Aluminum portable enclosure LCD (1920x1080 Resolution) DVI Connectors. 300 cd/m2. 400:1 Contrast Ratio (Model: BPCW1730HD-i7-8700)

17.3" Rugged Aluminum portable enclosure LCD (1920x1080 Resolution) DVI Connectors. 300 cd/m2. 400:1 Contrast Ratio (Model: BPCW1730HD-i7-8700)

Main Feature

    • 17.3" FHD LCD display, 1920x1080, LED backlight
    • Support Micro ATX Motherboard
    • Offer 4 full length slots expansion capability
    • Industrial multi-languages keyboard with touchpad
    • 1 U600W power supply, 100-240VAC
    • Support2x5.25", 1x2.5" hidden, Ixslim DVD-RW
    • Carrying case to manage portable PC with ease
Inquiry/Quote Request
BPCW1730HD-i7-8700
  • Specifications
  • Download
  • Contact Sales
K/B & Mouse Foldable USA language keyboard w/touchpad
Mainboard Supermicro Server Board supports 8th Generation Intel Core i7/i5/i3
Slots Layout 1 PCI-E 3.0 x16 (in x16 slot, Reserved for GT1060 video card), 3 PCI-E 3.0 x1 (2 PCI-E 3.0 x1 open after system integration)
M.2 Interfac 1 PCI-E 3.0 x4
CPU Type Intel Core i7-8700 Coffee Lake Processor 3.2GHz 8.0GT/s 12MB LGA 1151 CPU
Chipset Intel B360 Express Chipset
Memory 16GB DDR4 Non-ECC DIMM (2x 8GB DDR4, Max. 64GB)
Video NVIDIA GeForce GT 1060 6GB GDDR5 PCI-Express Video Card (PCI-E 3.0x16 slot)
Drive Seagate Enterprise Capacity 4TB 7200RPM SATA 6.0 GB/s 128MB Enterprise Hard Drive
Ports 2x USB 3.1 Ports (1 Type A rear, 1 Type C rear), 4x USB 3.0 Ports (1 rear, 3 via headers), 5x USB 2.0 Ports (3 rear, 2 via header), 1x HDMI Port, 1x DisplayPort, 1x RJ45 LAN Port
Audio Realtek ALC888S, 7.1 channels
LAN Single LAN with Intel(r) single Ethernet PHY i219V
Optical Drive Slim DVDRW
Power Supply 1U, 600W, 100~240VAC, Auto switch
Software None, Optional
Carrying Bag Complimentary carrying bag with wheels
Warranty Standard one year manufacturing warranty
Dimension 417Wx 352Hx 186D mm (16.42"x 13.86"x 7.32")
Pakaging Double Boxes with foam (23"x22"x15")
Microsoft Windows 10 Pro OS 64-bit, DVD + Installation

Environmental Factors

  Operating Non-Operating
Temperature 0°C~50°C -20°C~60°C
Relative Humidity 10%~90% 10%~95%
Approval CE, FCC, RoHS
