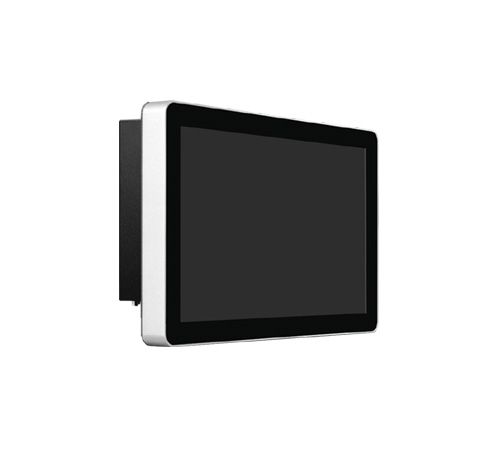

18.5" High Brightness Panel PC, 1000nits, PCAP Touch w/ Intel Core i7, 256GB M.2, 16G RAM, Win 11 Pro (Model: SPCW1850i7-FW11-PCAP)

18.5" Panel PC, 1920x1080, 1000nits, PCAP Touch Intel® 12th Gen Alderlake-Core i7-12700TE with 256GB M.2 2280 16G DDR4 SO-DIMM-2666, Win 11 Pro 64bit

18.5" Panel PC, 1920x1080, 1000nits, PCAP Touch Intel® 12th Gen Alderlake-Core i7-12700TE with 256GB M.2 2280 16G DDR4 SO-DIMM-2666, Win 11 Pro 64bit

Inquiry/Quote Request
SPCW1850i7-FW11-PCAP
  • Overview
  • Specifications
  • Download
The iTech 18-inch High Brightness Panel PC (PCW1850i7-FW11-PCAP) is a cutting-edge industrial-grade solution, designed for environments requiring high performance and durability. Powered by an Intel i7 processor and featuring a 1000 nits high-brightness display with capacitive touch technology, it ensures optimal visibility and smooth operation in both indoor and outdoor applications. With a fanless design for silent operation and long-term reliability, this panel PC is perfect for use in outdoor kiosks, manufacturing systems, and other industrial settings where efficiency and clarity are paramount.


Features:
  • 1000 nits High Brightness LED Backlight
  • 18.5" LCD 1920*1080 Resolution
  • Internal Power Supply, 0~50°C
  • Intel® 12th Gen Alderlake-Core i7-12700TE
  • 256GB M.2 2280, M-Key PCIe G3x4 SSD, 0°C ~ 70°C
  • 16G DDR4 SO-DIMM-2666 0°C ~ 85C
  • Win 11 Pro 64bit OEM DVD
  • Note: All PCAP touch and built-in Internal Power supply
  • Note: Silk Screen Top left
  • 3 x RJ45 2.5GbE, 1 x HDMI, 2 x Display Port
  • 2 x USB3.2 Gen2 Type A, 2 x USB 2.0 on Rear IO
  • 1 x USB 2.0 on right side of bezel
  • 1000Base-X Fiber PCI-Express Ethernet Card
  • AC 100~264V Power Input
  • -20~60℃ Operating Temp
System
Processor Intel 12th Gen Alderlake-Core i7-12700TE
System Memory 16G DDR4 SO-DIMM-2666 0°C ~ 85C
External I/O Port 3x GIGA LAN RJ45
4x USB 3.1 Gen 1
3x HDMI, Support 4K resolution
Storage 256GB M.2 2280, M-Key PCIe G3x4 SSD, 0°C ~ 70°C
1 x2.5" Storage Bay
Expansion 1 x PCI-e x16
1 x M.2 (2230) E-Key, supports WiFi module
1 x M.2 (3042/2242/2260/2280) B-Key, Share with storage
Power Requirement
Power Input AC 110~264V Power Input
LCD
Display Type 18.5" TFT LCD
Max. Resolution 1920*1080
Max. Color 16.7M
Luminance 1000 nits
View Angle 89/89/89/89
Backlight Lifetime 30,000 hours
Touch Screen
Type USB PCAP Touch
Mechanical
Construction Aluminum Bezel and Metal Steel Case
IP Rating Front side IP40 compliance
Mounting VESA Mount
Dimension 465.8 x 286.4 x 84.1 mm
Environment
Operating Temp -20~60 °C , IEC-60068-2-1/2/14
Storage Temp -40~80 °C
Humidity 10~90% @40 °C, non-condensing
EMC FCC / CE Class A Certification
Vibration 1.5 Grms @10~500Hz, IEC-60068-2-64
