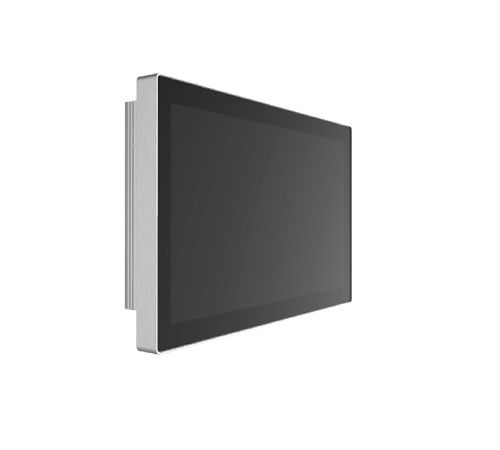

18.5" IP65 Military PCAP Panel PC w/ Intel Tigerlake-UP3 Core i3/i5, DC 12~24V (Model: LMilW1800)
18.5" 1920x1080 Defence PCAP Panel PC, Intel Tigerlake-UP3 Core i3/i5 Processors, IP65 Aluminum Front Bezel, AG, Removable 2.5" HDD/SSD Tray, DC 12~24V Wide Range Power Input, -40~70°C
LMilW1800
- Overview
- Specifications
- Download
| SYSTEM |
| Processor |
Intel TigerLake-UP3 Core i3/i5 Processors |
| System Memory |
2 x DDR4 SO-DIMM, up to 64GB |
| External I/O Port |
4 x USB 3.2 Gen2 Ports |
| 2 x RJ45 LAN (Intel I225-LM supports 2.5GbE LAN) |
| 1 x Display Port |
| 1 x HDMI |
| 4 x RS-232/422/485 |
| 1 x Audio out |
| 1 x Power press button |
| 1 x D38999 Connector for Power Input |
| Storage |
1 x 2.5" Storage Bay |
| 1 x M.2 M-key(NVME) 2280 Socket |
| Operating System |
Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2) |
| Windows 11 IoT Enterprise (64-bit, 21H2, Pre-test) |
| Linux Ubuntu 22.04 (64-bit, by request) |
| Linux Yocto Project 3.1 (64-bit, by request) |
| Expansion |
1 x M.2 B-key 2242/3042 (SATA 3.0, PCIe x1, USB 2.0) |
| 1 x M.2 E-key 2230 ( PCIe x1, USB 2.0) |
|
| |
| LCD |
| Display Type |
18.5" TFT LCD |
| Max. Resolution |
1920*1080 |
| Max. Color |
16.7M |
| Luminance |
350 nits |
| Contrast Ratio |
1000 : 1 |
| View Angle |
89/89/89/89 |
|
| |
| POWER REQUIREMENT |
| Power Input |
DC 12~24V Wide Range Power Input with 19Vdc MIL-STD-461G Adapter |
|
| |
| ENVIRONTMENT |
| Mounting |
VESA Mount 75 x 75 / 100 x 100 by M4 Screw Hole, Panel Mount |
| Certification |
FCC / CE Class A Certification MIL-STD-461G CE101/CE102 Compliant |
| Operating Temp |
-40~70 °C ' IEC-60068-2-1/2/14 |
| Storage Temp |
-40~70 °C |
| Humidity |
10~90% @40 °C, non-condensing |
| Vibration & Shock |
MIL-STD-810H, Method 514.8, Procedure I, 5~500Hz (Compliance) MIL-STD-810H, Method 516.8, Procedure
I, 20g 11ms (Compliance) |
| Dimension |
358.5 x 281.5 x 84 mm |
|
