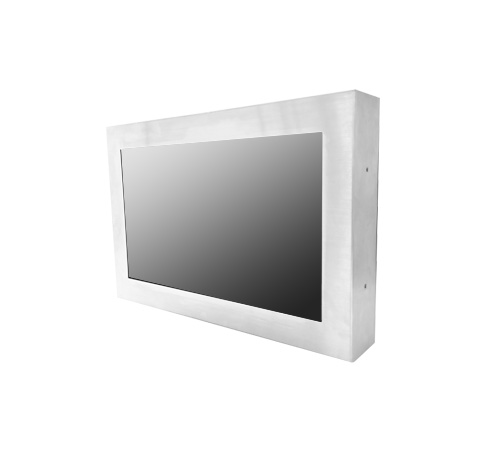

18.5" 350nits IP66 Stainless Chassis w/ VGA+ DVI, SDI, Compliance: MIL-STD-810G / MIL-STD-461E (Model: EMCHW1850-SIP)

IP66 Stainless-304 Chassis Wide 18.5" LCD, 1920x1080, LED-350nits, WV(178°/178°),WT(-20~70C), w/o-Speaker, w/Ext. Adapter, IP66 Cables I/O: VGA+ DVI, SDI, Compliance: MIL-STD-810G (Vibration and Shock) and MIL-STD-461E

Modularize mechanical design provides flexible product configuration and easy maintenance
Optional build-in touch screen for interactive application
Available with auto-brightness sensor offers application in day and night
Stainless Steel Enclosure
Complete custom design/solution for OEM customers
Auto Power On: Monitor is always "ON" when connect to power.
Auto Video Signal On: Monitor (Backlight) will turn off when no video signal, but it will Auto turn back on.

Panel	Cell Type / Glass Surface	TFT LCD / Black Anti-Glare, low reflection coating
	Aspect Ratio / Size	Wide / 18.5" viewable diagonal area
	Active Area / Pixel Pitch	411.6(H) x 232.2(V) mm / 231(H) x 213(V) per one triad
	Native Resolution / Colors	1920(H) x 1080(V) / 16.7M
	Brightness / Contrast	350 cd/m2 (typ) / 1000 : 1
	Response Time	< 20 ms
	Viewing Angle (typical)	H.178° (- 89° ~ + 89°) , V. 178° (- 89° ~ + 89°)
	Light Source	LED backlight, Long life, 35,000 hrs (typ)
Input Sources	PC System	Signal	Analog RGB (0.7/1.0 Vp-p, 75 ohms)
		Sync	Separate Sync, Composite Sync, Sync On Green
		Frequency	Fh : 30 - 82Khz , Fv : 50 -75Hz
	Audio System	N / A
Input Terminals	1 x VGA, 1 x DVI, 1 x SDI , 1x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug
Convenient Features	Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B)
	OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
Power	9~36V DC
Power Consumption	Operation / Power Saving	17.5 watt , < 1 watt (Support DPMS)
Operating Condition	Temperature / Humidity	- 20°C ~ 70°C (- 4°F ~ 158°F) , 10% ~ 90% (no condensation)
Storage Condition	Temperature / Humidity	- 30°C ~ 80°C (- 22 °F ~ 176°F) , 10% ~ 90% (no condensation)
Certification		FCC , CE
Dimensions	Physical	Please refer to Drawing
	Carton	W x H x D = TBD
Weight	N.W. / G.W.	6 Kgs / 7 Kgs
Container Loaded	20ft / 40ft / 40ft HQ	TBD (Sets , By pallet)
