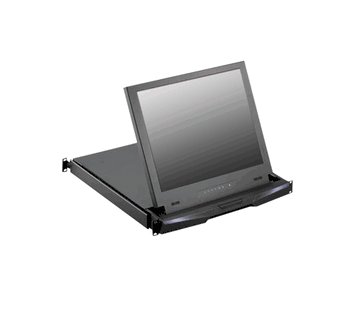

| Console Port |
| Video input |
3G-SDI + VGA + HDMI + BNC + S-Video |
|
| |
| LCD Panel |
| Panel size ( diagonal ) |
19" |
| Native resolution |
1280 x 1024 |
| Brightness ( cd/m² ) |
250 |
| Contrast ratio ( typ. ) |
1000 : 1 |
| Colors |
16.7 M |
| Viewing angle ( L/R/U/D ) |
85/85/80/80 |
| Response time ( ms ) |
5 |
| Dot pitch ( mm ) |
0.294 |
| Display area ( mm ) |
376.32H x 270.33V |
| Surface treatment |
Haze 25%, Hard-coating |
| Surface hardness |
3H |
| Backlight type |
LED |
| MTBF (hrs) |
30,000 |
|
| |
| Physical |
| Dimensions ( W x D x H ) |
Product |
442 x 570 x 44 mm
17.4 x 22.4 x 1.73 inch |
| Packing |
588 x 758 x 120 mm
23.1 x 29.8 x 4.7 inch |
| Weight |
Net |
12.5 kg / 27.5 lb |
| Gross |
18.5 kg / 40.7 lb |
|
| |
| Mounting Distance |
| Display Drawer |
510 ~ 740 mm
20.1 ~ 29.1 inch |
|
| |
| Video Option |
| Digital |
DVI-D |
DVI-D single link |
| Analog |
S-Video ( 4-pin ) |
NTSC & PAL |
| Composite ( BNC ) |
NTSC & PAL |
|
| |
| Audio Option |
| Input |
Connector |
3.5mm stereo jack |
| Impedance / Power level |
30kQ / 750mV |
| Output |
Connector |
3.5mm stereo jack |
| Resistance / Power level |
30kQ / 2.8V |
| Speaker |
Dual stereo |
2W x 2 |
|
| |
| Power |
| Input |
Auto-sensing 100 to 240VAC, 50 / 60Hz |
| Consumption
|
Screen on |
Max. 22W |
| Power saving mode |
Max. 2W |
| Power button off |
Max. 1W |
|
| |
| Environment |
| Operating temp. |
0 to 55°C degree |
| Storage temp. |
-20 to 60°C degree |
| Operating humidity |
10~90%, non-condensing |
| Storage humidity |
5 ~90%, non-condensing |
| Operating altitude |
16,000 ft |
| Non-operating altitude |
40,000 ft |
| Shock |
10G acceleration ( 11ms duration ) |
| Vibration |
10~300Hz 0.5G RMS random vibration |
|
| |
| Compliance |
| EMC |
FCC, CE |
| Safety |
CE / LVD & UKCA |
| Environment |
REACH & RoHS3 / WEEE |
|
| |
| |
3G / HD / SD-SDI INPUT |
SDI input is an ideal solution for the broadcast grade video and high resolution CCTV market. SDI input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty.
* SDI option comes with speakers. |
| |
| INPUT |
3G-SDI IN |
BNC x 1 / 0.8Vp-p ( 75 ohm ) |
| 3G-SDI OUT |
BNC x 1 / Active through, equalized & relocked |
| |
| Standard Compliance |
Video |
SMPTE 425M / 274M / 296M / 125M ITU-R BT.656 |
| Audio |
SMPTE 299M / 272M-C |
| |
| Compatible Video Format |
3G-SDI |
1080p
1080p
1080i
720p |
@60 / 50Hz, 4:2:2
@30 / 25 / 24Hz, 4:4:4
@60 / 50Hz, 4:4:4
@60 / 50Hz, 4:4:4 |
| HD-SDI |
1080p
1080i
720p |
@30 / 25 / 24Hz, 4:2:2
@60 / 50Hz, 4:2:2
@60 / 50Hz, 4:2:2 |
| SD-SDI |
480i @60Hz, 4:2:2 |
| ITU-R BT.656 |
576i @50Hz, 4:2:2 |
| |
| Compatible Audio Format |
3G-SDI |
48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video |
| HD-SDI |
48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video |
| SD-SDI |
48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized / Asynchronized Video |
| |
Max. Transmission Distance
75 ohm coaxial cable |
3G-SDI |
150m at 2.97Gb/s |
| HD-SDI |
250m at 1.485Gb/s |
| SD-SDI |
480m at 270Mb/s |
|
