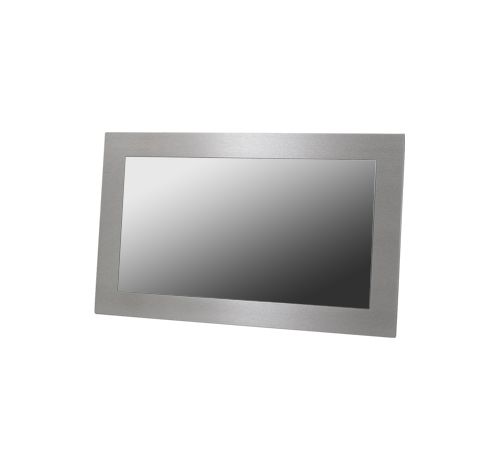

19.5" Panel Mount Industrial Monitor Edge-to-Edge Window w/ HazLoc Rated NEMA 4X, Resistive Touch (Model: HPMW1950EE-C1D2-TR)

19.5" Panel Mount Industrial Monitor, HazLoc Rated NEMA 4X, IP65/66/69/69K, Edge-to-Edge Window, Single-Touch Analog Resistive Touch Screen, AC and DC input. 1.5 m (5') AC power and 1.8 m (6') VGA to DVI video and USB touch cables and CVGA-DVI included

19.5" Panel Mount Industrial Monitor, HazLoc Rated NEMA 4X, IP65/66/69/69K, Edge-to-Edge Window, Single-Touch Analog Resistive Touch Screen, AC and DC input. 1.5 m (5') AC power and 1.8 m (6') VGA to DVI video and USB touch cables and CVGA-DVI included

Inquiry/Quote Request
HPMW1950EE-C1D2-TR
  • Overview
  • Specifications
  • Download
Engineered for industrial users, these displays offer exceptional picture quality and a rugged design for dependable continuous operation.

Featuring a unique single-cutout, stud-free design and a slim depth of just 1.82" to 2.12", they are effortless to install. With options such as touch screens and KVM extenders, these displays provide outstanding versatility.


Features:
  • Certified for hazardous locations: Class I, II, III, Division 2 by UL
  • Vivid displays with superior contrast and ultra-wide viewing angles
  • Proven reliability with an MTBF of over 250,000 hours
  • Multiple window options: touch screen, glass, acrylic, and food-grade protection
  • Compact design, only 46 mm to 54 mm (1.81" to 2.12") in depth
  • Choice of stainless steel, carbon steel, or seamless edge-to-edge bezels
  • Easily panel mounted, no need for drilling stud holes
  • Meets industrial standards: UL 508A, UL 50E, FCC Class A, CE, UL 60950 3rd Edition / cUL Recognized Component


Optional Accessories
  • Industrial Keyboards (IP65/66, NEMA 4X rated)
  • Screen Protectors
  • Extended cable options up to 300 m (1000')
  • KVM Extenders
DISPLAY
Type Thin-film transistor (TFT) Active Matrix Liquid Crystal, LED Backlit
Size 19.5" diagonal / 16:9
Image Size (W x H) 435 x 239 mm (17.1" x 9.4")
Native Resolution* HD1080p (1920 x 1080 @ 60 Hz)
Pixel Pitch 0.2265 mm x 0.221 mm
Number of Colors 16.7 million
Brightness (white) 250 nits (cd/m2)
Viewing Angle (Hori/Vert) 178° / 178°
Contrast Ratio 3000:1
Backlight Brightness half-life 50,000 hours

VIDEO
Input Connectors DVI-I, DisplayPort
Inputs using Adapter** HDMI, HDMI Mini, HDMI Micro, DisplayPort Mini, VGA, BNC
Input Signal Formats*** RGB: Sep., Comp., SoG; DVI; DisplayPort
Horizontal / Vertical Scan 24-82 kHz / 50-75 Hz
Response Rate 25 ms
ENVIRONMENTAL
Temperature Operating Temperature: 0° to 50°C (32° to 122°F); Storage Temperature: -20° to 60°C (-4° to 140°F) / Humidity: 20% to 90% non-condensing
Humidity 20% to 90% non-condensing
Operating Shock / Vibration 15 g, 6 msec, half-sine / Operating Vibration (sine): 1.0 g, swept sine 9-500 Hz; Transport Vibration (random): 0.1g2 /Hz, 10-200Hz; 0.03g2
/Hz, 200-2000 Hz
Altitude Operating: up to 10,000 ft; Non-operating: up to 40,000 ft
ELECTRICAL
Monitor Input 100 to 240 VAC, 0.6/0.3 A, 60/50 Hz and 10.8 to 26.4 VDC, 2.3 to 0.9 A
Power Consumption ~27 W
Power (Standby mode) <2 W
FUNCTIONAL
Control Panel Buttons Power On/Off button, Control Function buttons
On-Screen Display Menus Picture, Color, Image, OSD, Setup, Information (other options depending on model)
PHYSICAL
Enclosure Type Panel mount; rear collar compresses gasket against panel (5/16" maximum panel thickness); held by M5 studs within single cutout
Bezel Material Edge-to-edge window or stainless steel faceplate
Panel Rating (with proper installation) Edge-to-edge window: NEMA/UL Type 12/4/4X; IP65/66/69/69K Stainless steel: NEMA/UL Type 12/4/4X; IP65/IP66
Depth behind Panel Edge-to-edge: 46.3 mm (1.82") Stainless: 47.5 mm (1.87")
Front Bezel Outside Dimensions (WxHxD) Edge-to-edge: 530 mm x 333 mm x 9 mm (20.87" x 13.1" x 0.35") Stainless: 528 mm x 328.5 mm x 9 mm (20.80" x 12.93" x 0.35")
Cutout Dimensions (WxH) 497.8 mm x 298.5 mm (19.60" x 11.75")
Net / Shipping Weight 12.9 lbs. / 18 lbs.
Window Options Single-Touch Resistive Touch Screen, Multi-Touch PCAP Touch Screen, Glass window (non-touch), or Food Protection window (non-touch)
COMPLIANCES AND CERTIFICATIONS
Electrical UL/EN/IEC62368-1, UL/EN/IEC60950-1, UL Recognized Component for US and Canada, UL 508A, CAN ICES-3A/NMB-3A, CE, UKCA, FCC Class A, NOM
Enclosure, Environmental UL 50E, IEC 60721-3 (Reliability), WEEE
Hazardous Location UL Listed for Class I, II, III, Division 2, Groups A, B, C, D, F, G; Temp Code T5
