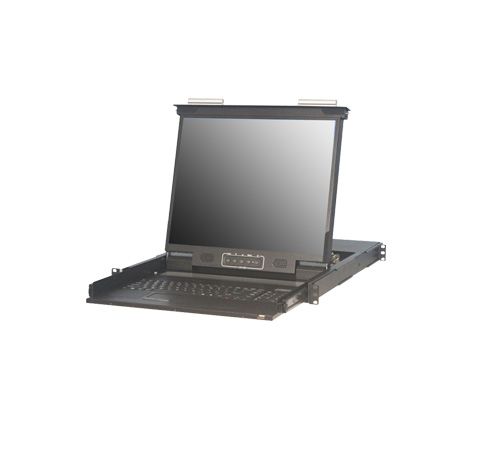

19" 250nits Rackmount LCD Monitor Combo DB15 LCD Console Drawer w/ IP Module 8 Ports (Model: AVP119IP8e)

19" 1280x1024, 250nits Rackmount LCD Monitor Combo DB15 LCD Console Drawers with IP Module with 8 Ports, Durable 104-Key Keyboard and Touch pad, Includes 8 KVM cables USB 1 to 2 KVM Cable 1.8M

19" 1280x1024, 250nits Rackmount LCD Monitor Combo DB15 LCD Console Drawers with IP Module with 8 Ports, Durable 104-Key Keyboard and Touch pad, Includes 8 KVM cables USB 1 to 2 KVM Cable 1.8M

Inquiry/Quote Request
AVP119IP8e
  • Overview
  • Specifications
  • Download
The Rackmount LCD Combo with DB15 IP Module and 8 Ports from iTech offers a space-saving and highly integrated solution for professional server room and data center environments. Designed for efficiency and remote access, this rackmount combo includes an LCD display, keyboard, touchpad, and built-in IP KVM switch with 8 ports for centralized control and enhanced security.


Features:
  • Integrated with 19" 1280x1024 LCD panel.
  • Support combo interface VGA-USB and VGA-PS2.
  • Built in IP module for remote access (remote user video resolution up to 1920x1080 @ 60Hz).
  • Additional one USB Local console to add loc al KB/Mouse & VGA.
  • Durable 104-key keyboard and touch pad.
  • Quick and simple installation.
  • Self-locking and auto release rails for ultra-convenience.
  • Port selection via push buttons or On-Screen -Display (OSD).
  • Dedicated daisy chain port to expand up to 240 servers.
  • Access Control List (ACL) security function for up to 8 independents user accounts.
Direct no. of Computers 8
Maximum no. of Computers 232(Daisy Chain)
LCD Size 19"
Backlight LED
Resolution 1280 x 1024
Max.color 16.7M
Luminance 250cd/m2
View Angel (H/V) 170 / 160
Contrast Ratio 1000 : 1
Port Selection Push Button, OSD or Hotkey
IP module & USB Local console remote user video resolution up to 1920 x 1080 @ 60Hz; local console with USB x2 for KB/ Mouse, VGA x1
KB/Mouse Emulation USB & PS2
Rack Depth 500mm to 1100mm ( rack cabinet front rails to rear rails )
Power 100-240V AC 50/60Hz via IEC T ype power cord
Environment Operation temp: 0 to 50?
Storage temp: -20 to 60?
Humidity: 10% - 90%, non-condensing
Shock: 10G acceleration ( 11ms duration)
Vibration: 17 to 500Hz 1G PTP
Physical Dimensions / Net Weights 448x42x580m m (WxHxD) / 12.0KG
Packing Dimensions / Gross weights 715x140x780 mm (WxHxD) / 18.0KG
Accessories
1.8meter IEC Type Power Cord
Optional Related Item
1.8 meter 2-in-1 KVM Cable-USB&VGA 1.8 meter 3-in-1 KVM Cable-PS/2&VGA
3.0 meter 2-in-1 KVM Cable-USB&VGA 3.0 meter 3-in-1 KVM Cable-PS/2&VGA
5.0 meter 2-in-1 KVM Cable-USB&VGA 5.0 meter 3-in-1 KVM Cable-PS/2&VGA
