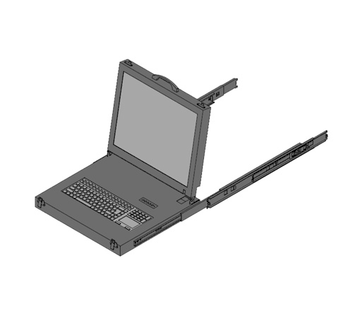

19" Rugged 2U Rack Mount Chassis Display w/ VGA, DVI, HDMI, Built-in IP68 Mil. Keyboard w/ Touchpad (Model: Nmil21900e)
Rugged 2U Rack Mount Chassis Display 19" Display and Water-Proof Keyboard, Touch Pad. 1280x1024, 1x VGA, 1x DVI, 1x HDMI, DC 9~36V with MIL-D-38999 Mil. Circular Connector, Design to Meet To meet MMIL-STD-461 and MIL-STD-810
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
Introducing our rugged 19-inch 2U rack mount chassis display, engineered to excel in the most demanding industrial and military environments. Built to meet MIL-STD-810 standards, this industrial-grade enclosure offers unparalleled reliability and performance for high-stakes applications. Designed with shock and vibration resistance, it ensures uninterrupted operation even in the harshest conditions. Whether for aerospace, military, or industrial use, our rack mount chassis provides a secure and dependable solution for your critical systems. Experience the ultimate in rugged computing with our reliable and versatile rack mount display.
| Rack Mount | Height | Standard 2U Height Rack mount Chassis |
| Mechanical | Rugged heavy-duty galvanized steel with anti-corrosion treatment | |
| Color | Coating in semi-gloss black | |
| LCD | LCD Size | 19" Diagonal |
| LCD Grade | Military Grade supporting operating temperature from -30 up to +85 deg. C | |
| LCD Technology | Active Matrix TFT LCD | |
| Backlight | LED | |
| Resolution | 1280 x 1024 | |
| Ratio | 4:3 | |
| Luminance | 350 cd/m2 | |
| Contrast Ratio | 1000 : 1 | |
| Display Color | 16.7 M | |
| View Angle | 85 / 85 / 80 / 80 degrees | |
| Power Consumption | 20W for LCD module alone | |
| Glass | Protected Glass | Yes, built in protected glass |
| Touch | Touch | Optional at your request |
| Control | OSD Control Buttons | On-Off, Auto, Menu, Brightness Up, Down etc. |
| Keyboard and Touch Pad | Keyboard | Military grade keyboard with touch pad |
| Material | Silicon rubber 100% water proof | |
| IP Rating | IP68 water-proof military grade keyboard | |
| LED Backlight | LED Silicon rubber keys | |
| Touch Pad Interface | USB | |
| No. of Key | 124 keys | |
| Function Key | 24 Function Keys | |
| Interface | USB | |
| Application | Military or Industrial | |
| I/O Port | HDMI | 1 x VGA |
| VGA | 1 x DVI | |
| USB | 1 x HDMI | |
| Power Input | 1 x DC 9~36V with MIL-D-38999 Mil. Circular connector | |
| Dimensions | Retracted | 465 (W) x 88 (H) x 406 (D) mm |
| Pull-Out | 465 (W) x 88 (H) x 487 (D) mm | |
| O.S. | Operating System | Support Windows 10, 11, Linux |
| Environmental | Operate Temperature | 0 to +55 degree C Optional : -20 to +55 Degree C |
| Storage Temperature | -30 up to +85 Degree C |
