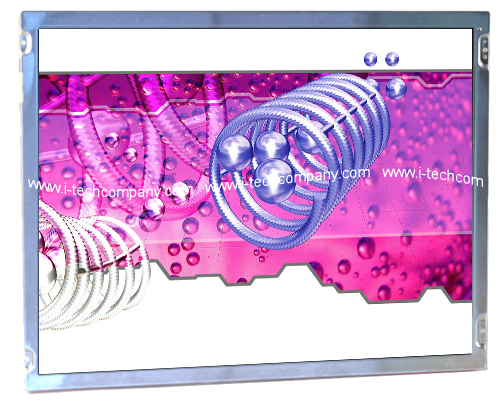

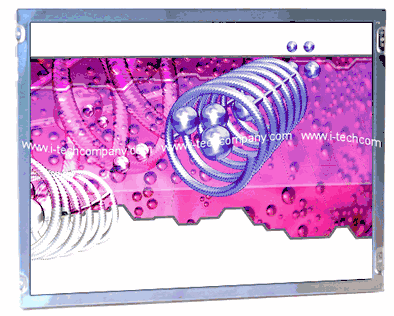

19" Ultra Thin Smart Panel Open Framer LCD Monitor (Model: AUT1900)

19" Ultra Thin Smart Panel Open Framer LCD Monitor (Model: AUT1900)

19" Ultra Thin Smart Panel Open Framer LCD Monitor (Model: AUT1900)

AUT1900
  • Overview
  • Download
Product discontinues. Contact us at Info@iTechLCD.com for Replacement Item.

The AUTI 900 is an open frame monitor providing an analog RGB interface for 19" SXGA TFT LCD panels with a high quality screen image. This monitor supports from VGA to UXGA resolution at a maximum of 85Hz refresh rate with expanding to full screen image. It gives a lot of convenience to the user in installing various application such as gaming, amusement, industry and so on and accessing the GUI(Graphic User Interface).

Panel Specification

Item

Description



Unit

Type No.

Samsmg LTM190EX-L01





Size

19" Diagonal



Inch

Active Display Area

376.32 x 301.06



mm

Number of Pixels

1280 (H) x 1024 (V)





Pixel Arrangement

RGB Vertical Stripe





Pixel Pitch

0.294 x 0.294



mm

Color Depth

16.7M





Surface Treatments

Hard Coating (3H), Haze 25%





Viewing Angle

Horizontal:

Ó¨ L

75



degree

    Ó¨ R 75
    Ф H 75
    Ф L 60

Contrast Ratio

Typ. 700 :1





Response Time

Rise time (tr):1.7ms(Typ.)





(CRZ10)

Fall time (tf) :6.3ms(Typ.)





Average Brightness

Typ. 300 cd/m2





Frame Rate

Typ. 60-

Max. 77Hz





Panel Dimension

(WID) 396.0 x 324.0 x 26.5 (17.0)



mm

CCFT

4 (2 Dual)
